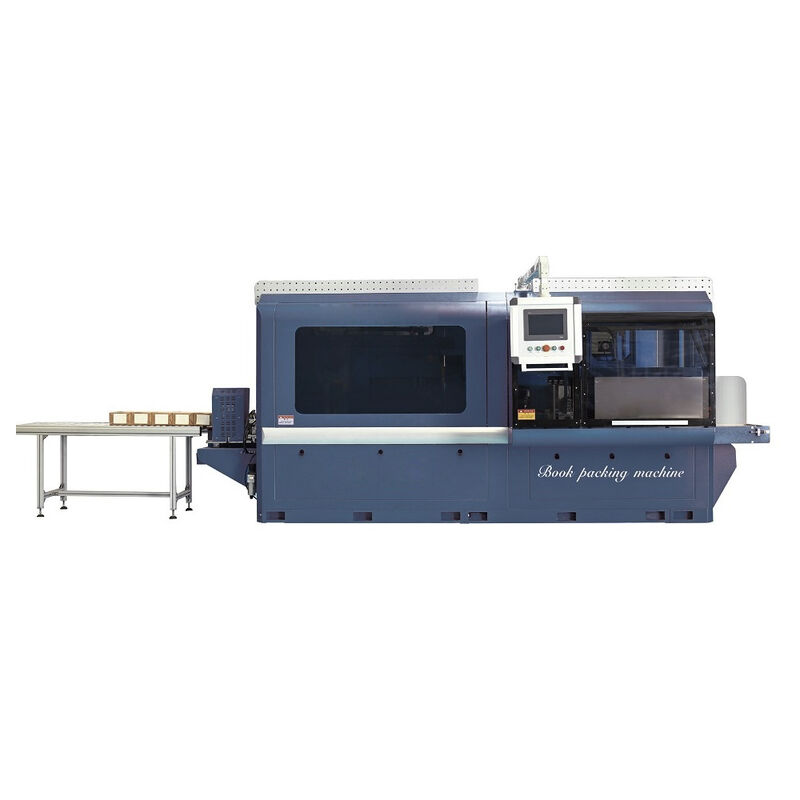

Industrial Book Stack Packer servo driven fast job changeover stable wrapping

Product Details

Place of Origin: China

Brand Name: HXCP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 68000 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Industrial book stack packer machine, Servo-driven packing machine, Fast job changeover wrapping machine


Max Package Size:	240×310mm	Min Package Size:	93×130mm
Package Height Range:	90-280mm	Max Mechanical Speed:	12packs/minute
Package Paper:	70gsm Rolled Craft Paper	Max Diameter Of Rolled Craft Paper:	480mm
Min Diameter Of Rolled Craft Paper:	75-80mm	Power:	4Kw
Electric:	220V	Dimensions:	6000×2100×2100mm(L×W×H)
Weight:	4000kg

Max Package Size:	240×310mm
Min Package Size:	93×130mm
Package Height Range:	90-280mm
Max Mechanical Speed:	12packs/minute
Package Paper:	70gsm Rolled Craft Paper
Max Diameter Of Rolled Craft Paper:	480mm
Min Diameter Of Rolled Craft Paper:	75-80mm
Power:	4Kw
Electric:	220V
Dimensions:	6000×2100×2100mm(L×W×H)
Weight:	4000kg

Product Description

The Book Stack Kraft Paper Packing Machine is a fully automated end-of-line packaging solution specially built for printing and bookbinding factories, exclusively for wrapping book stacks with rolled kraft paper. It covers mainstream book sizes from 64K to 16K, meeting standardized packaging demands for various finished books, brochures and signatures after post-press processing.

Different from semi-manual separate packaging equipment, this machine merges all independent packaging steps into one uninterrupted automatic production line. It autonomously completes book stack feeding, kraft paper cutting, uniform glue coating, neat edge folding, tight sealing and accurate labeling in sequence without frequent manual intervention. The integrated one-pass workflow eliminates repeated material handling, greatly streamlining the whole book packaging procedure and unifying the outer wrapping appearance of every batch of products.

At its core lies a precise servo-driven system matched with mature industrial automatic control modules. This premium configuration delivers outstanding wrapping precision, stable long-hour running performance and extended service life. Servo control makes every movement of paper cutting, folding and labeling highly consistent, avoiding uneven folds, insufficient sealing or offset labels that often appear on ordinary packaging machines. Even under continuous all-day operation, the machine maintains steady output and uniform wrapping quality.

Max Package Size
240×310mm

Min Package Size
93×130mm

Package Height Range
90-280mm

Max Mechanical Speed
12packs/minute

Package Paper
70gsm Rolled Craft Paper

Max Diameter of Rolled Craft Paper
480mm

Min Diameter of Rolled Craft Paper
75-80mm

Power
4Kw

Electric
220V

Dimensions
6000×2100×2100mm(L×W×H)

Weight
4000kg

This equipment brings obvious economic benefits to printing plants. It drastically cuts manual packaging labor and slashes labor costs, while solving the problem of inconsistent wrapping standards caused by different workers’ operating habits. What’s more, it supports ultra-fast job changeover finished within only a few minutes when switching between 64K to 16K book specifications. There is no need for complicated mechanical debugging, which effectively shortens production downtime and improves overall workshop turnover efficiency.

Industrial Book Stack Packer servo driven fast job changeover stable wrapping 5

With wide size compatibility, full-process automatic integration, reliable servo control and flexible quick changeover performance, the Book Stack Kraft Paper Packing Machine is an essential cost-effective finishing auxiliary device. It helps printing enterprises realize standardized, efficient and low-labor automatic outer packaging for book stacks, upgrading the whole post-press production line to a higher level of intelligence.
