HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function

Name: HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HXP40E
Price: 11000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HXP40E

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 11000 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Continuous carton processing machine with auto feeding, Carton forming machine with discharging function, Packing machine with auto forming


Carton Opening Speed:	Up To 10-12 Cases/min	Carton Size:	L(250-450)×W(150-400)×H(100-400)mm
Power Supply:	220V 50/60Hz 1 Phase	Power:	240W
Adhesive Tape Width:	55-72mm (Choose One Type)	Carton Storage Quantity:	80-100pcs (800-1000mm)
Air Consumption:	450NL/min	Air Compressing:	6-8kg/cm³

Carton Opening Speed:	Up To 10-12 Cases/min
Carton Size:	L(250-450)×W(150-400)×H(100-400)mm
Power Supply:	220V 50/60Hz 1 Phase
Power:	240W
Adhesive Tape Width:	55-72mm (Choose One Type)
Carton Storage Quantity:	80-100pcs (800-1000mm)
Air Consumption:	450NL/min
Air Compressing:	6-8kg/cm³

Product Description

HXP40E Continuous Carton Processing Machine With Auto Feeding Forming And Discharging Function

For Auto Box Unfolding, Folding and Tape Sealing Work

Product Introduction

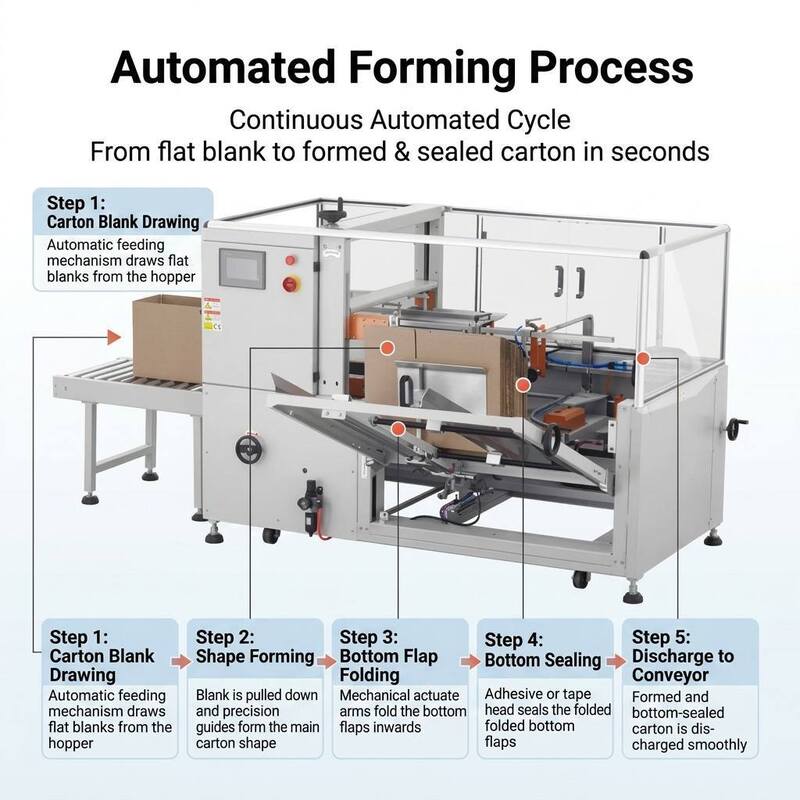

The HXP40E Automatic Carton Forming Bottom Sealer is a fully automated packaging equipment designed to simplify and standardize carton pre-packaging procedures. It realizes a complete unmanned working cycle: automatically picking flat carton blanks from the material magazine, shaping flat sheets into standard carton structures, sequentially folding bottom flaps in place, and applying adhesive tape for firm bottom sealing.

After finishing forming and sealing, the completed empty cartons are automatically discharged to the downstream conveyor for subsequent packaging procedures. With continuous cyclic operation, the machine achieves a maximum working speed of 12 cartons per minute, delivering stable and high-efficiency carton forming and bottom sealing performance for automated packaging lines.

Application Scenarios

Printing and packaging factories: automatic forming and bottom sealing of product packaging cartons
E-commerce logistics warehouses: continuous empty carton preparation for product packaging and shipment
Industrial automated packaging lines: front-end carton unfolding and shaping supporting equipment
Consumer goods manufacturing plants: batch carton forming processing for finished product packaging
Large-scale packaging workshops requiring standardized and high-speed carton pre-forming work

Core Advantages

Different from inefficient manual carton arrangement and sealing, the HXP40E realizes full-process automation for carton bottom packaging. It follows a standardized mechanical procedure to fold bottom flaps in sequence and apply tape evenly, avoiding irregular folding and uneven sealing caused by manual operation. The automatic discharging design seamlessly connects with downstream conveyor systems, forming an uninterrupted automated packaging workflow. Stable cyclic operation guarantees long-hour high-speed production capacity, greatly reducing manual labor investment.
