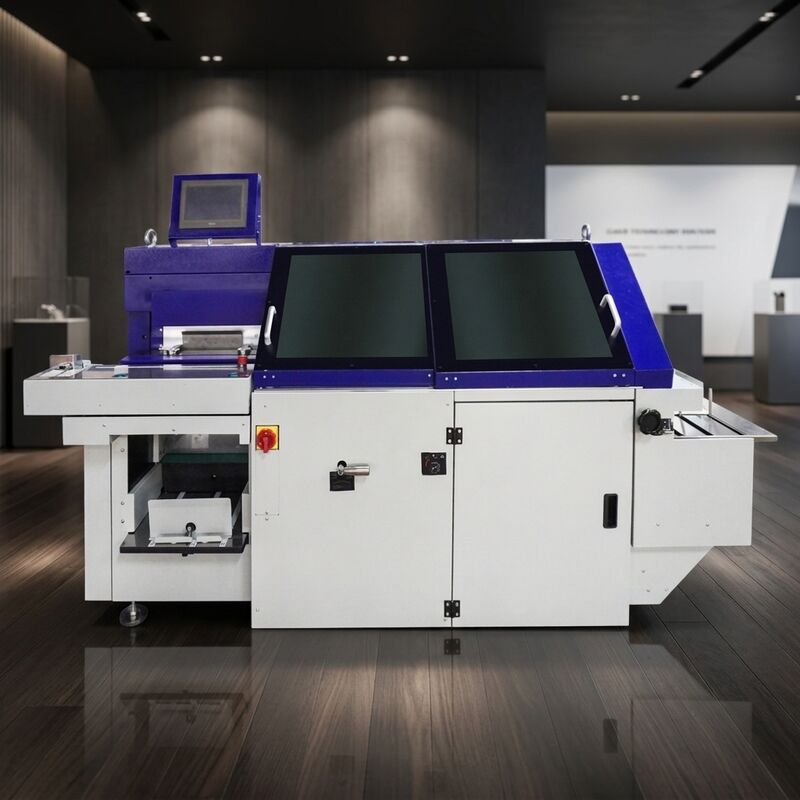

HX500PB1 Equipment With Caliper 15 Inch Touchscreen Auto Parameter Setup Function
Tailored exclusively for modern digital printing and personalized finishing demands, the HX500PB1 Digital Perfect Binding Machine is a high-precision single-clamp binding system optimized for short-run, variable data and book-of-one production. Breaking the limitations of traditional binding equipment that relies on mass batch production, it perfectly adapts to the flexible, small-batch and customized order characteristics of digital printing, becoming an indispensable core device for intelligent post-press workshops.
Wide adjustable binding thickness from 1 mm to 50 mm adapts thin pamphlets and thick portfolios, meeting diversified customized book demands of print-on-demand factories. The all-in-one automated workflow unifies clamping, spine preparation, gluing, creasing and nipping to standardize binding quality and reduce defective products caused by manual operation. Automatic parameter configuration system reduces operator skill threshold and improves production consistency amid frequent order changes. Pre-set storage for multiple job parameters accelerates format switching, while expandable inline configuration improves overall automation of digital printing workshops.
Automated Workflow
This machine integrates all core finishing procedures into one fully automated workflow, including automatic book clamping, spine preparation, precise gluing, cover creasing and tight nipping. The all-in-one streamlined process eliminates cumbersome standalone operations, greatly simplifies the binding workflow, and effectively improves overall production efficiency while guaranteeing uniform and exquisite book binding quality.
Intelligent Control System
Equipped with a built-in precision caliper and intuitive 15-inch large touchscreen, the HX500PB1 realizes intelligent automatic parameter setting. It automatically matches key operating parameters according to book specifications, drastically reducing manual mechanical adjustment and order changeover time. Meanwhile, it supports custom parameter template storage, enabling one-click recall for repeated orders and greatly improving production flexibility and convenience.
Key Features
- Tailored for digital short-run printing with frequent size and thickness replacement
- All core finishing steps completed automatically in one station
- 15-inch intelligent touch control with auto thickness detection
- Storable parameter templates for one-click recall of recurring specifications
- Reserved inline connection ports for peripheral equipment integration
Technical Specifications
| Number of Clamps |
1 |
| Max Book Block Size |
320×320mm |
| Min Book Block Size |
135×105mm |
| Max Cover Size |
320×660mm |
| Front Part of Book Clamp Reach |
350mm |
| Rear Part of Book Clamp Reach |
310mm |
| Min Cover Size |
135×230mm |
| Book Block Thickness |
1-50mm |
| Cover Paper Thickness |
82-302gsm |
| Max Cover Stacking Height |
70mm |
| Glue Temperature Range |
120-180℃ (170℃ or below, parameter adjustment by service personnel is required) |
| Max Production Speed |
500 cycles/hour |
| Power Supply |
3 Phase, 400V (converted to 200V via transformer), 50/60Hz |
| Machine Dimensions (without cover table extension) |
2295×860×1545mm (L×W×H) |
| Machine Dimensions (with cover table extension) |
2430×910×1545mm (L×W×H) |
System Integration
With excellent expandability and compatibility, the machine supports inline docking with trimmers and automatic feeding systems. It can be seamlessly integrated into full digital finishing production lines to realize fully automated upstream and downstream linkage operation. Designed for high-flexibility digital printing scenarios, it minimizes production downtime, reduces manual intervention, and helps printing enterprises maximize production efficiency for variable and short-run customized orders.
Application Benefits
Featuring wide thickness compatibility, intelligent automatic setup, integrated full-process binding and flexible line matching capability, the HX500PB1 provides a high-efficiency, low-cost and high-precision perfect binding solution for modern digital printing factories, fully meeting the diversified personalized book production needs of the market.
