HX480P Booklet Production Line Stitching Folding Trimming 2800 Cycles/H

Name: HX480P Booklet Production Line Stitching Folding Trimming 2800 Cycles/H
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX480P
Price: 27200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Model Number: HX480P

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 27200 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                booklet production line machine, stitching folding trimming machine, exercise book making machine 2800 cycles/h


Paper Width:	145-340mm	Paper Length:	200-480mm
Max Product Size:	340×240mm	Min Product Size:	145×100mm
Binding Speed:	Max 4000 Times/h	Dimensions:	4700×950×1000mm(L×W×H)

Paper Width:	145-340mm
Paper Length:	200-480mm
Max Product Size:	340×240mm
Min Product Size:	145×100mm
Binding Speed:	Max 4000 Times/h
Dimensions:	4700×950×1000mm(L×W×H)

Product Description

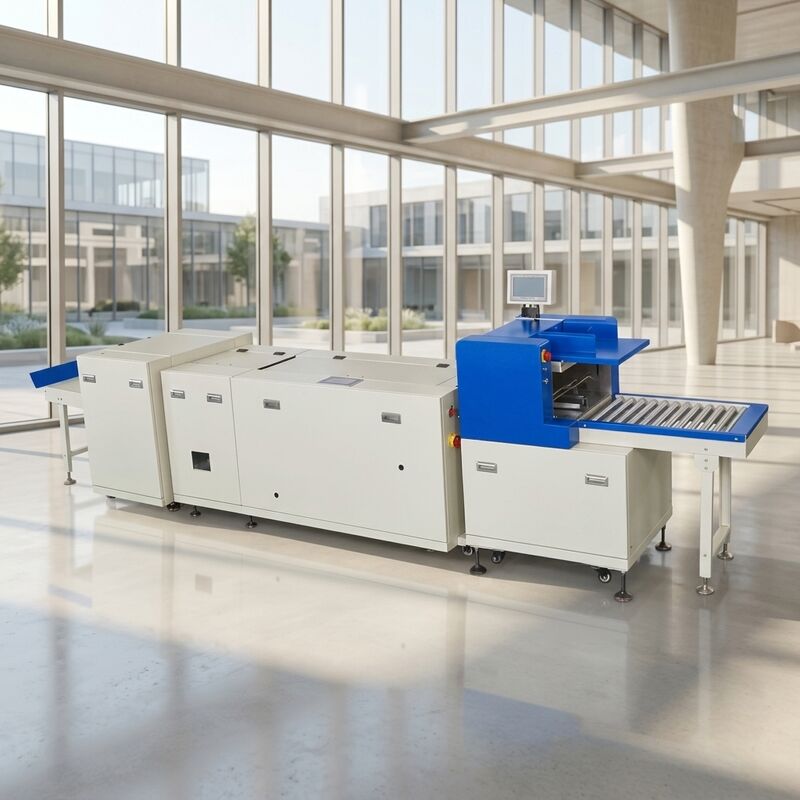

HX480P Booklet Production Line Stitching Folding Trimming 2800 Cycles/H

The HX480P Covering Stitching Trimming Machine is an all-in-one automatic post-press production line that integrates cover feeding, saddle stitching, folding, flat pressing and three-side trimming within one continuous workflow.

Product Overview

Constructed with a heavy-duty steel frame, the machine adopts servo synchronized feeding and intelligent automatic adjustment for stitching heads and cutting dimensions. Fitted with an independent flat pressing module and high-precision front & double-sided trimming assemblies, it reaches a maximum output of 2800 cycles per hour. The equipment reduces parameter setup time and produces uniformly finished booklets, perfectly matching the production demands of digital printing factories.

Application Scenarios

Mass finishing of digital printed booklets, brochures, catalogues and promotional pamphlets
Integrated post-processing for printing plants focusing on saddle stitched thin publications
Production of corporate brochures, exhibition catalogues, instruction manuals and leaflets
Print shops requiring fully automatic one-line processing to cut manual transfer procedures

Core Advantages

Complete production line covering feeding stitching folding trimming
Heavy duty frame with servo synchronized feed system
Smart automation reduces manual setup and adjustment time
High precision trimming mechanisms for accurate cutting
Dedicated flat press for consistent booklet quality
Speed up to 2800 cycles per hour for efficient workflow

Product Highlights

Integrated Automation

Combines cover feeding, saddle stitching, folding, flat pressing and 3-side trimming in one automatic line

Robust Construction

Heavy-duty steel frame ensures stable structure and durable long-term industrial operation

Smart Control Systems

Servo-driven synchronized feeding and intelligent auto-adjustment systems for precision

Precision Finishing

Built-in independent flat press plus high-precision front and double-sided trimming mechanisms

High-Speed Production

Maximum working speed of 2800 cycles per hour for high-volume continuous production

Efficient Workflow

Reduces equipment setup time and delivers consistent finished booklets for digital print workflows
