HX480P Covering Stitching Trimming Machine High Precision Servo-Driven Synchronized Feeding

Product Details

Place of Origin: China

Brand Name: HXCP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 27200 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 20 work days

Payment Terms: D/P, D/A, T/T, L/C

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high precision servo-driven stitching machine, synchronized feeding trimming machine, notebook making machine with warranty


Paper Width:	145-340mm	Paper Length:	200-480mm
Max Product Size:	340×240mm	Min Product Size:	145×100mm
Binding Thickness:	0.2-2.5mm	Folding Thickness:	0.2-2.5mm
Binding Speed:	Max 4000 Times/h	Speed With Cover:	Max 2800 Times/h
Front Cutting Length:	95-238mm	Front Cutting Width:	Max 340mm
Front Cutting Thickness:	5mm	Front Cutting Speed:	Max 3500 Times/h
Double-Sided Cutting Length:	98-238mm	Double-Sided Cutting Width:	140-335mm
Double-Sided Cutting Thickness:	5mm	Double-Sided Cutting Speed:	Max 2800 Times/h
Dimensions:	4700×950×1000mm(L×W×H)	Weight (Stitcher/Folder & Delivery):	345kg
Weight (Front Cutting):	170kg	Weight (Double-Sided Cutting):	358kg

Paper Width:	145-340mm
Paper Length:	200-480mm
Max Product Size:	340×240mm
Min Product Size:	145×100mm
Binding Thickness:	0.2-2.5mm
Folding Thickness:	0.2-2.5mm
Binding Speed:	Max 4000 Times/h
Speed With Cover:	Max 2800 Times/h
Front Cutting Length:	95-238mm
Front Cutting Width:	Max 340mm
Front Cutting Thickness:	5mm
Front Cutting Speed:	Max 3500 Times/h
Double-Sided Cutting Length:	98-238mm
Double-Sided Cutting Width:	140-335mm
Double-Sided Cutting Thickness:	5mm
Double-Sided Cutting Speed:	Max 2800 Times/h
Dimensions:	4700×950×1000mm(L×W×H)
Weight (Stitcher/Folder & Delivery):	345kg
Weight (Front Cutting):	170kg
Weight (Double-Sided Cutting):	358kg

Product Description

HX480P Covering Stitching Trimming Machine High Precision Servo-Driven Synchronized Feeding 0

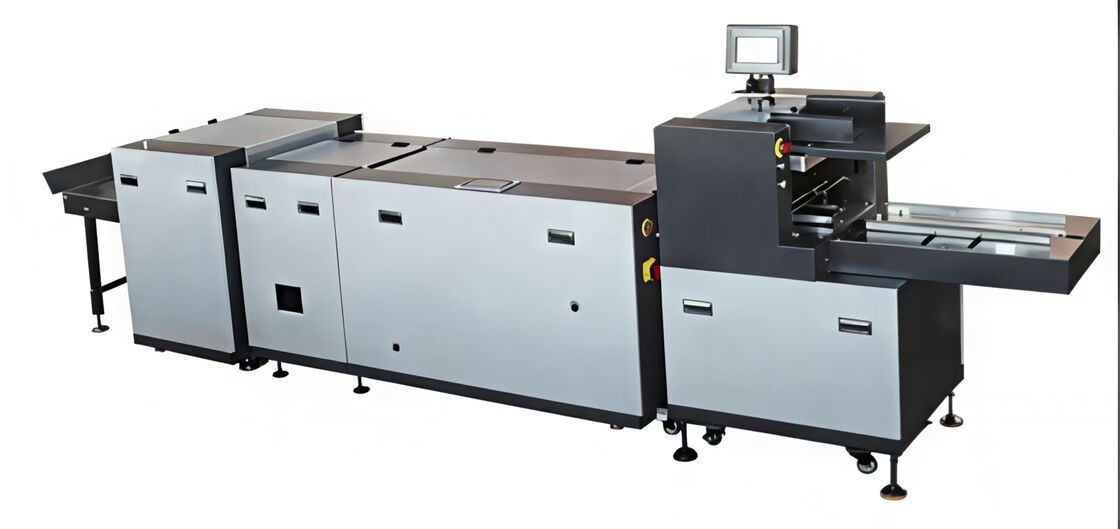

The HX480P Covering Stitching Trimming Machine seamlessly integrates cover feeding, saddle stitching, folding, flat pressing, and 3-side trimming into a single automatic production line. Built on a heavy-duty steel frame, it utilizes servo-driven synchronized feeding and smart automated adjustments for stitching heads and cutting sizes. Combining a dedicated flat press with high-precision front and double-sided trimming mechanisms, the HX480P operates at up to 2800 cycles/hour. It minimizes setup time while consistently delivering perfectly finished booklets tailored for modern digital print environments.
