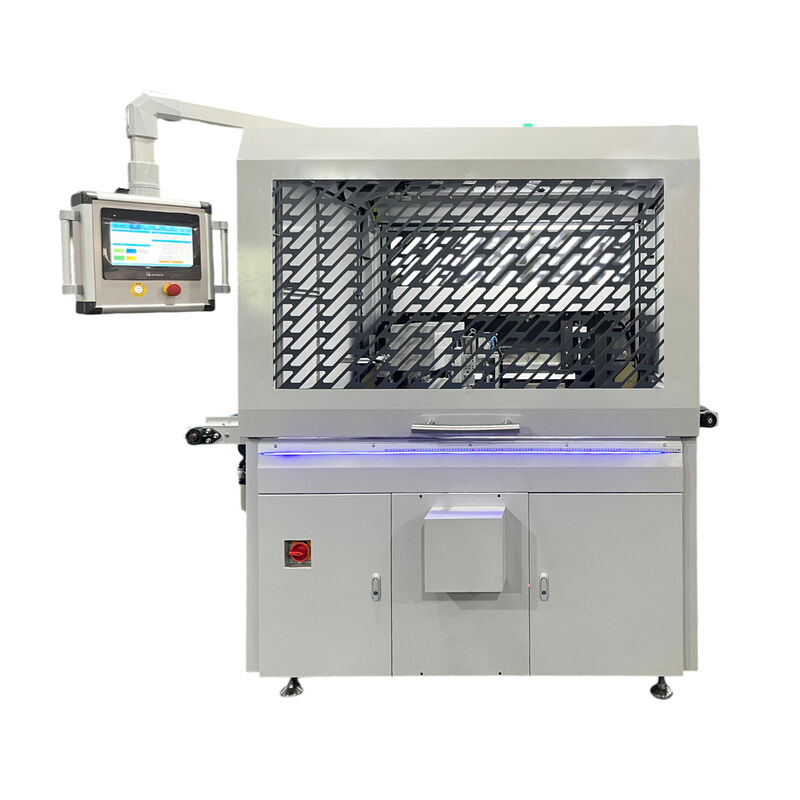

HDP TST Digital Finishing Three Side Trimmer with Single Knife and Automated Rotation

Product Details

Place of Origin: China

Brand Name: HXCP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 51500 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                three side trimmer single knife, digital finishing three side trimmer, book block automated rotation trimmer


Max Feeding Book Size:	330×390mm(Front Edge×Height)	Min Feeding Book Size:	120×140mm(Front Edge×Height)
Max Finished Book Size:	320×380mm(Front Edge×Height)	Min Finished Book Size:	110×130mm(Front Edge×Height)
Thickness:	5-40mm(Min Thickness Is Related To Book Size)	Feeding Direction:	Spine-First Feeding
Max Spine Centering:	Center Of The Spine Must Not Exceed 195mm	Min Spine Centering:	Center Of The Spine Must Not Exceed 67.5mm
Speed:	240-300cuts/hour(Speed Is Related To Book Weight)	Accuracy:	±0.5mm
Power:	8kW	Weight:	1800kg
Dimensions:	2000×1500×1900mm(L×W×H)

Max Feeding Book Size:	330×390mm(Front Edge×Height)
Min Feeding Book Size:	120×140mm(Front Edge×Height)
Max Finished Book Size:	320×380mm(Front Edge×Height)
Min Finished Book Size:	110×130mm(Front Edge×Height)
Thickness:	5-40mm(Min Thickness Is Related To Book Size)
Feeding Direction:	Spine-First Feeding
Max Spine Centering:	Center Of The Spine Must Not Exceed 195mm
Min Spine Centering:	Center Of The Spine Must Not Exceed 67.5mm
Speed:	240-300cuts/hour(Speed Is Related To Book Weight)
Accuracy:	±0.5mm
Power:	8kW
Weight:	1800kg
Dimensions:	2000×1500×1900mm(L×W×H)

Product Description

Product Overview

Engineered for digital finishing, the HDP TST Digital Three Side Trimmer utilizes advanced single-knife technology with automated pile rotation to deliver precise, markless cutting for perfect bound, sewn block, and board books. This robust system features zero-makeready capabilities, enabling instant format changes via barcode scanning or JDF workflow integration. Its servo-controlled hydraulic clamping automatically adjusts to variable book thicknesses, while the unique bi-directional knife movement prevents spine tearing. With optional corner rounding and a fully interlocked safety design, the HDP TST supports unattended operation.

Key Features

Single-Knife Technology

Advanced single-knife cutting combined with automated pile rotation for precise, markless trimming results.

Zero-Makeready

Instant format changes via barcode scanning or JDF workflow integration, eliminating setup downtime.

Servo-Controlled Clamping

Hydraulic clamping automatically adjusts to variable book thicknesses for consistent, reliable cuts.

Bi-Directional Knife Movement

Unique cutting motion prevents spine tearing and preserves the integrity of every book block.

Optional Corner Rounding

Integrated corner rounding option extends finishing capability within a single streamlined workflow.

Fully Interlocked Safety Design

Comprehensive safety interlocks enable reliable unattended operation with minimal supervision.

Applications

Perfect bound books
Sewn block books
Board books
Digital finishing and short-run production environments

Product Gallery

Product Video

Watch the HDP TST Digital Three Side Trimmer in operation, demonstrating single-knife cutting, automated pile rotation, and zero-makeready format changes.
