Semi Auto Hardcover Case Maker with Dual Side Wrapping and One Person Operation

Name: Semi Auto Hardcover Case Maker with Dual Side Wrapping and One Person Operation
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: Semi Auto
Price: 12,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: Semi Auto

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 10sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Semi Auto Hardcover Case Maker, Dual Side Wrapping Case Maker, One Person Operation Case Making Machine


Max Case Size:	760×450mm/900×450mm	Min Case Size:	140×140mm
Cover Material Thickness:	80-200gsm	Paperboard Thickness:	1-4mm
Work Speed:	3-9pcs/min	Power Supply:	380V/50HZ, 220V/60HZ
Weight:	650kg	Machine Dimension:	1680×1620×1600mm

Max Case Size:	760×450mm/900×450mm
Min Case Size:	140×140mm
Cover Material Thickness:	80-200gsm
Paperboard Thickness:	1-4mm
Work Speed:	3-9pcs/min
Power Supply:	380V/50HZ, 220V/60HZ
Weight:	650kg
Machine Dimension:	1680×1620×1600mm

Product Description

Product Overview

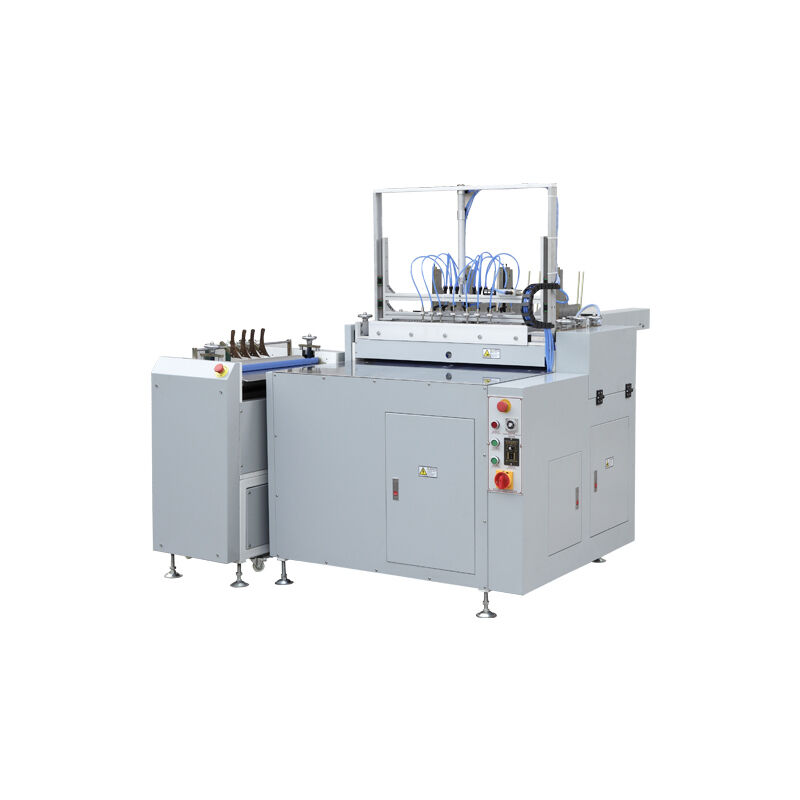

Semi Auto Case Making Machine

The Semi Auto Case Making Machine is designed for covering and pressing a wide range of products, including notebooks, photo books and photo albums, folders, certificates, and hardcover books. It features simultaneous dual-side wrapping, and case pasting is completed in two passes. The machine is easy to operate by one person, requires only a small working space, and is especially suitable for post digital printing. It is a practical and reliable partner for post-press processing, especially digital post-press.

Technical Parameters

Model	HXCP
Max Case Size	760×450mm / 900×450mm
Min Case Size	140×140mm
Cover Material Thickness	80–200gsm
Paperboard Thickness	1–4mm
Work Speed	3–9pcs/min
Mainframe Power	6.7kW
Power	15.5kW (Heating for Glue Melting 6kW)
Weight	650kg
Dimensions	1680×1620×1600mm (L×W×H)

Key Features

Dual-side simultaneous wrapping: Both sides are wrapped at the same time, improving case making efficiency.
Two-pass case pasting: The case pasting process is completed easily in two passes.
One-person operation: Simple operation with reduced labor requirements.
Compact footprint: Small working space required, suitable for limited production areas.
Wide application: Ideal for notebooks, photo books, photo albums, folders, certificates, hardcover books, and more.
Digital post-press friendly: Well suited for short-run, multi-variety orders after digital printing.
Cost-effective semi-automatic design: Easy maintenance and friendly investment cost.

Products Show
