HX60 PLUS Hardcover Case Making Machine for printing binding and packaging manufacturers

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX60 PLUS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 257200 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 10 sets/month

Get Best Price
Product Details
Highlight:

HX60 PLUS hardcover case making machine

,

hardcover case maker for printing binding

,

HX60 PLUS packaging case making equipment

Speed:
60pcs/min
Board Thickness:
1-4mm(optional Device For Minimum Thickness 0.6mm)
Spine Width:
6-80mm
Width Of Channel Rail:
4-15mm
Thickness Of Center Board Strip:
1-4mm(the Most Thickness Is 2.5mm When Width Is 6mm)
Thickness Of Flexible Spine:
0.3-0.5mm
Thickness Of Cover Material:
0.1-0.3mm
Maximum Size (Expand) Of Hardcover:
680×390mm
Minimum Size (Expand) Of Hardcover:
105×160mm
Dimensions:
5.7×3.3
Speed:
60pcs/min
Board Thickness:
1-4mm(optional Device For Minimum Thickness 0.6mm)
Spine Width:
6-80mm
Width Of Channel Rail:
4-15mm
Thickness Of Center Board Strip:
1-4mm(the Most Thickness Is 2.5mm When Width Is 6mm)
Thickness Of Flexible Spine:
0.3-0.5mm
Thickness Of Cover Material:
0.1-0.3mm
Maximum Size (Expand) Of Hardcover:
680×390mm
Minimum Size (Expand) Of Hardcover:
105×160mm
Dimensions:
5.7×3.3
Product Description
Product Overview

In the modern case making industry, high speed, flexibility, and reliability are essential for manufacturers looking to improve production efficiency and meet changing market demands. The HX60 PLUS High Speed Hardcover Case Making Machine is designed to provide stable and efficient automatic production, with speeds of up to 60 cycles/min. It is suitable for printing and binding factories, packaging manufacturers, and large-scale production centers, supporting a wide range of hardcover cases, diaries, folders, and luxury packaging products. With flexible optional modules and fast changeover design, the HX60 PLUS provides an efficient solution for diverse case making requirements.

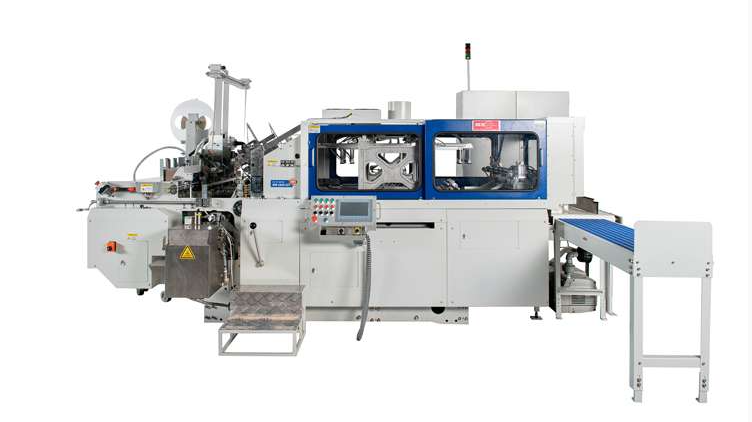

HX60 PLUS High Speed Hardcover Case Making Machine in operation

The HX60 PLUS High Speed Case Making Machine sets the scale world-wide for flexibility and reliability in case making production, establishing itself as a global benchmark for high-performance case making equipment.

A standout feature of the HX60 PLUS is its unique and constantly optimized design, which ensures continuous improvement in performance, efficiency, and adaptability to evolving production needs.

This high-speed machine is capable of automatically producing a wide range of products, including book cases, files, posters, calendars, and board game components, covering diverse application scenarios.

The HX60 PLUS High Speed Case Making operates at an impressive high speed of up to 60 cycles/min automatically, significantly boosting production throughput and meeting high-volume production demands.

Technical Specifications
Speed 60 pcs/min
Board Thickness 1–4 mm (optional device for minimum thickness 0.6 mm)
Spine Width 6–80 mm
Width of Channel Rail 4–15 mm
Thickness of Center Board Strip 1–4 mm (the most thickness is 2.5 mm when width is 6 mm)
Thickness of Flexible Spine 0.3–0.5 mm
Thickness of Cover Material 0.1–0.3 mm
Maximum Size (Expand) of Hardcover 680 × 390 mm
Minimum Size (Expand) of Hardcover 105 × 160 mm
Compressed Air Requirements 650 L/min @ 6 bar
Power 15.5 kW (Heating for Glue Melting 6 kW)
Weight 6300 kg
Dimensions 5.7 × 3.3 m
Key Advantages

Its unmatched flexibility allows the machine to switch between different product types seamlessly, adapting to small-batch, diverse orders as well as large-scale, continuous production.

The reliable performance of the HX60 PLUS minimizes operational downtime, reduces waste, and ensures consistent quality across every batch of products, enhancing business productivity and profitability.

For businesses producing book cases, the HX60 PLUS delivers precise, uniform results, ensuring that each book case meets the strict quality standards for hardcover book production.

It efficiently manufactures files and office stationery, with stable performance that guarantees consistent sizing and finishing, meeting the needs of office supply manufacturers and distributors.

The HX60 PLUS High Speed Case Making Machine also excels at producing posters, calendars, and board game components, showcasing its versatility in handling different materials and product specifications.

The automatic operation of the HX60 PLUS significantly reduces labor requirements, allowing one operator to monitor the entire production process and freeing up staff for other high-value tasks.

Its constantly optimized design not only improves efficiency but also enhances ease of operation and maintenance, reducing long-term use costs for businesses.

Integration & Market Value

The HX60 PLUS is designed to integrate seamlessly into existing production lines, streamlining the case making workflow and improving overall production efficiency for enterprises.

With its global reputation for flexibility and reliability, the HX60 PLUS High Speed Case Making Machine helps businesses gain a competitive edge in the global case making market.

Whether for small-batch custom production or large-scale mass manufacturing, the HX60 PLUS delivers consistent, high-speed results, making it an essential investment for modern case making businesses.

Product Gallery
Product Video


Watch the HX60 PLUS High Speed Hardcover Case Making Machine in action.
