HX60 PLUS Hardcover Case Making Machine with high speed and consistent output

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX60 PLUS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 257200 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 10 sets/month

Get Best Price
Product Details
Highlight:

HX60 PLUS hardcover case making machine

,

high speed case making machine

,

consistent output case maker

Speed:
60pcs/min
Board Thickness:
1-4mm(optional Device For Minimum Thickness 0.6mm)
Spine Width:
6-80mm
Width Of Channel Rail:
4-15mm
Thickness Of Center Board Strip:
1-4mm(the Most Thickness Is 2.5mm When Width Is 6mm)
Thickness Of Flexible Spine:
0.3-0.5mm
Thickness Of Cover Material:
0.1-0.3mm
Maximum Size (Expand) Of Hardcover:
680×390mm
Minimum Size (Expand) Of Hardcover:
105×160mm
Dimensions:
5.7×3.3
Speed:
60pcs/min
Board Thickness:
1-4mm(optional Device For Minimum Thickness 0.6mm)
Spine Width:
6-80mm
Width Of Channel Rail:
4-15mm
Thickness Of Center Board Strip:
1-4mm(the Most Thickness Is 2.5mm When Width Is 6mm)
Thickness Of Flexible Spine:
0.3-0.5mm
Thickness Of Cover Material:
0.1-0.3mm
Maximum Size (Expand) Of Hardcover:
680×390mm
Minimum Size (Expand) Of Hardcover:
105×160mm
Dimensions:
5.7×3.3
Product Description

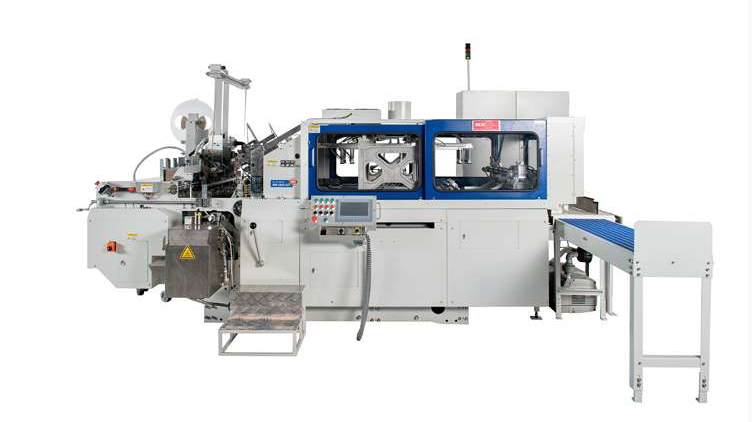

HX60 PLUS High Speed Case Making Machine

In the modern case making industry, flexibility, reliability, and high speed are the core demands for businesses aiming to stay competitive. The ability to produce diverse products efficiently while maintaining consistent quality is a key differentiator in the global market. The HX60 PLUS High Speed Case Making Machine sets the global standard for flexibility and reliability in case making production, with its unique, continuously optimized design. It caters to the needs of printing and binding factories, packaging facilities, and large-scale production centers, enabling automatic, high-speed production of various case products to meet diverse market demands.

HX60 PLUS High Speed Case Making Machine producing hardcover book cases on the production line
Global Benchmark for Flexibility and Reliability

The HX60 PLUS High Speed Case Making Machine sets the scale worldwide for flexibility and reliability in case making production, establishing itself as a global benchmark for high-performance case making equipment. A standout feature is its unique and constantly optimized design, which ensures continuous improvement in performance, efficiency, and adaptability to evolving production needs.

This high-speed machine automatically produces a wide range of products, including book cases, files, posters, calendars, and board game components, covering diverse application scenarios. It operates at an impressive speed of up to 60 cycles per minute automatically, significantly boosting production throughput and meeting high-volume production demands.

Technical Specifications
Speed60 pcs/min
Board Thickness1–4 mm (optional device for minimum thickness 0.6 mm)
Spine Width6–80 mm
Width of Channel Rail4–15 mm
Thickness of Center Board Strip1–4 mm (maximum thickness is 2.5 mm when width is 6 mm)
Thickness of Flexible Spine0.3–0.5 mm
Thickness of Cover Material0.1–0.3 mm
Maximum Size (Expand) of Hardcover680 × 390 mm
Minimum Size (Expand) of Hardcover105 × 160 mm
Compressed Air Requirements650 L/min @ 6 bar
Power15.5 kW (Heating for Glue Melting 6 kW)
Weight6300 kg
Dimensions5.7 × 3.3 m
Key Advantages
  • Unmatched flexibility: Switch between different product types seamlessly, adapting to small-batch, diverse orders as well as large-scale, continuous production.
  • Reliable performance: Minimizes operational downtime, reduces waste, and ensures consistent quality across every batch, enhancing business productivity and profitability.
  • Precise book case production: Delivers uniform results that meet the strict quality standards for hardcover book production.
  • Efficient file and stationery manufacturing: Stable performance guarantees consistent sizing and finishing for office supply manufacturers and distributors.
  • Versatile product handling: Excels at producing posters, calendars, and board game components, showcasing versatility across different materials and specifications.
  • Automatic operation: Significantly reduces labor requirements, allowing one operator to monitor the entire production process and freeing up staff for other high-value tasks.
  • Constantly optimized design: Improves efficiency while enhancing ease of operation and maintenance, reducing long-term use costs.
  • Seamless integration: Designed to integrate into existing production lines, streamlining the case making workflow and improving overall production efficiency.
Competitive Edge in the Global Market

With its global reputation for flexibility and reliability, the HX60 PLUS High Speed Case Making Machine helps businesses gain a competitive edge in the global case making market. Whether for small-batch custom production or large-scale mass manufacturing, the HX60 PLUS delivers consistent, high-speed results, making it an essential investment for modern case making businesses.

Product Gallery
Machine in Operation


Watch the HX60 PLUS High Speed Case Making Machine in action, demonstrating its automatic high-speed production of hardcover cases.
