HX460D Semi Automatic Book Sewing Machine for Thread Signature Bookbinding

Name: HX460D Semi Automatic Book Sewing Machine for Thread Signature Bookbinding
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX460D
Price: 191475.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX460D

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                HX460D semi automatic book sewing machine, thread signature bookbinding machine, book gathering and sewing equipment


Max. Sewing Size:	460×320mm	Min. Sewing Size:	150×100mm
Sewing Speed:	20-80 Cycles/min	Max. Number Of Needle Sets:	14
Motor Power:	1.65kw	Weight:	1100kg
Dimensions:	2330×1285×1500mm(L×W×H)

Max. Sewing Size:	460×320mm
Min. Sewing Size:	150×100mm
Sewing Speed:	20-80 Cycles/min
Max. Number Of Needle Sets:	14
Motor Power:	1.65kw
Weight:	1100kg
Dimensions:	2330×1285×1500mm(L×W×H)

Product Description

Product Overview

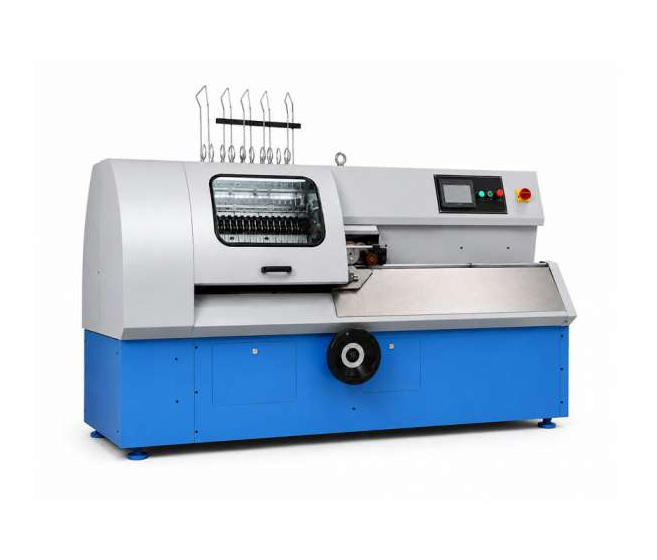

The HX460D Semi-Automatic Book Sewing Machine is designed for thread sewing of gathered signatures in sizes ranging from 150 × 100 mm to 460 × 320 mm. The operator manually places signatures on the feeding station, after which the machine automatically completes signature feeding, sewing, thread cutting, counting, and book block delivery. The machine is highly suitable for both softcover and hardcover book production.

Key Advantages

High Productivity: Sewing speeds of up to 80 cycles/min, supporting up to 14 sets of fine needles with a minimum 16 mm needle pitch for dense and precise sewing.
Intelligent Control: Equipped with a PLC control system, variable-frequency drive, color touchscreen, and LED lighting for intuitive and convenient operation.
Precision & Safety Monitoring: Photoelectric sensors provide automatic monitoring for thread breakage, broken needles, thread-hooking failure, and missing or multiple signatures.
Durable & Stable Design: Features a heat-treated wear-resistant cam system, adjustable bearing rollers, and a centralized lubrication system to ensure accurate needle alignment and stable long-term operation.
Versatile Application: Perfectly suited for both softcover and hardcover book production.

Technical Parameters

Max. Sewing Size	460 × 320 mm	Min. Sewing Size	150 × 100 mm
Sewing Speed	20–80 cycles/min	Max. Number of Needle Sets	14
Motor Power	1.65 KW	Weight	1100 kg
Dimensions	2330 × 1285 × 1500 mm (L × W × H)

Product Gallery

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

We are a manufacturer. We supply factory prices with good quality — you are welcome to visit us.

Q2: What is your guarantee or warranty on machine quality?

We offer high-quality machines with a 1-year guarantee and life-long technical support.

Q3: When can I get my machine after payment?

Delivery time depends on the exact machine you confirm.

Q4: How can I install my machine when it arrives?

We will send our engineers to your factory to install the machines and train your staff on how to operate them.

Q5: What is your delivery time?

Depending on the type of machine, delivery takes 15 to 60 days from the date of contract.

Q6: Do you have after-sales support?

Yes. We are happy to give advice, and we also have skilled technicians available across the world — we need your machines running in order to keep your business running.

Q7: How about the spare parts?

After we finalize all the details, we will offer you a spare parts list for your reference.

Q8: Do you sell only standard machines?

No. Most of our machines are built according to customer specifications, using top-quality components.

Q9: What will you do if the machine is broken?

Our machine warranty period is 12 months. If broken parts cannot be repaired, we can send new parts to replace them free of charge — you only need to pay the express cost. Beyond the warranty period, we can negotiate to solve the problem, and we supply technical support for the whole life of the equipment.

Q10: Can you be responsible for transport?

Yes. Please tell us the destination port or address — we have rich experience in transporting machinery.
