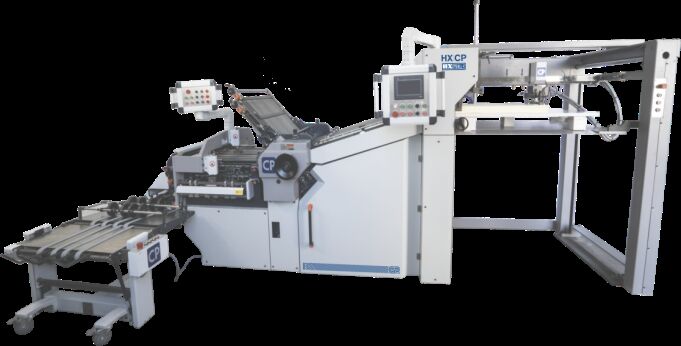

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle

Name: CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: CP78/4KLL-F
Price: 44500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Model Number: CP78/4KLL-F

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 44500 per set

Packaging Details: Vacuum packing with export wooden case.

Delivery Time: 15 work days

Payment Terms: T/T

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                CP gantry pallet folding machine, 4KLLF folding machine scratch proof buckle, CP78 pallet combination folding machine


Max Sheet Size:	780×1140mm	Min Sheet Size:	200×150mm
Sheet Gram:	40-210g/㎡	Mechanical Speed:	210m/min
Power Consumption:	8.5kW	Dimensions(L×W):	4.8×1.65m
Weight:	2.4T	Stacking Height:	0-1200mm

Max Sheet Size:	780×1140mm
Min Sheet Size:	200×150mm
Sheet Gram:	40-210g/㎡
Mechanical Speed:	210m/min
Power Consumption:	8.5kW
Dimensions(L×W):	4.8×1.65m
Weight:	2.4T
Stacking Height:	0-1200mm

Product Description

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle

Description:

CP78/4KLLF Gantry Pallet Combination Folding Machine with scratch proof buckle delivers high production capacity for medium to large circulations and large formats. Sheets on the pallet run into the feeder by pallet truck directly from the printing press with no manual intervention, and the gantry pallet feeder keeps interruptions for pallet feeding to the shortest. You can transport the entire printed pallet from the press delivery straight into the folder feeder, so the workflow stays continuous and efficient.

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle

3 hole PU suction wheel

Easier To Suck And Separate Paper
More Stable And Smooth
Also Capable Of Handling Thin Paper

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle

Special Steel rollers

Soft polyurethane section provides superior traction, holds excellent register, prevents marking；
patent fine & straight grain;
also capable of handling thin paper fold

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle

Electrical Box

Selected world-renowned brand of electrical components

Clear and rigorous layout of electrical box

Guarantee of stable and durable operation

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle

Gantry Pallet Feeder

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle

Scratch-Proof,
Capable Of Folding Surface Sensitive Pages

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle

Electronic Knife

Electric knife with imported servo motor system, which is more precise, more efficient and more durable.

Sheet Detector System

Double sheet, paper jam, blind-sheet diagnostic, features mechanical touch switch, which makes the emergency stop more stable and precise

Noiseless Air Pump

Imported from German, deduct noise effiently

Advanced Electronic Sensor

It can effectively monitor color pages, dark ink and other printed materials

Germany Special helical Gears

Deducting wear and tear, more durable, more stable

Automatic Lubrication Device

Automatic monitor machine running status, automatic refill lubrication oil if needed, low maintenance is required, ensuring the smooth operation of the folding machine

CP78/4KLLF Gantry Pallet Combination Folding Machine with Scratch Proof Buckle
