HX220 Automatic High Speed Book Sewing Machine 200 Signatures/Min Low Maintenance

Name: HX220 Automatic High Speed Book Sewing Machine 200 Signatures/Min Low Maintenance
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX220
Price: 180000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Model Number: HX220

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 180000 per set

Packaging Details: Vacuum packing with export wooden case.

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                HX220 automatic book sewing machine, high speed book sewing machine 200 signatures/min, low maintenance book sewing machine


Max. Machine Speed:	200cyc/min	Min. Book Size:	75×120mm
Max. Book Size:	320×420mm	Opening Head:	4-4-LAP
Number Of Stitches:	10	Standard Voltage:	380V/220V,50/60Hz,3ph
Dimensions:	2885×1800×1350mm(L×W×H)	Book Thickness:	0.25-4mm
Stitches Length:	19mm	Power:	4.5kW
Compressed Air:	500L/min @6bar	Weight:	3000kg

Max. Machine Speed:	200cyc/min
Min. Book Size:	75×120mm
Max. Book Size:	320×420mm
Opening Head:	4-4-LAP
Number Of Stitches:	10
Standard Voltage:	380V/220V,50/60Hz,3ph
Dimensions:	2885×1800×1350mm(L×W×H)
Book Thickness:	0.25-4mm
Stitches Length:	19mm
Power:	4.5kW
Compressed Air:	500L/min @6bar
Weight:	3000kg

Product Description

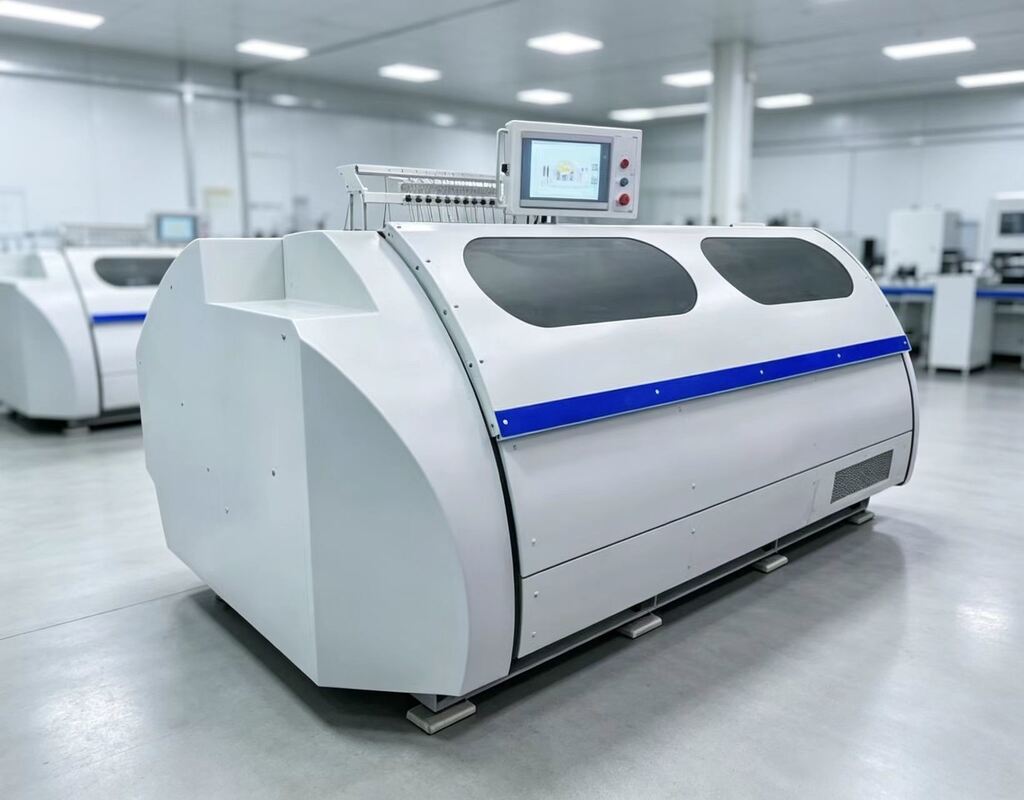

HX220 Automatic High Speed Book Sewing Machine

The HX220 Automatic High Speed Book Sewing Machine is engineered for high-volume bookbinding. Designed with an upgraded mechanical, electrical, and pneumatic system, it delivers exceptional performance, reliability, and longevity for modern print finishing lines.

Key Benefits

High-Speed Production: Reaches impressive speeds of up to 200 signatures per minute, maximizing your production efficiency.
Advanced Drive System: Adopts premium carbon-fiber components and three cam boxes to drive the feeder, sewing saddle, and upper sewing mechanisms smoothly.
Precision Sewing: Integrated with a sewing needle, hook needle, and thread cutter to ensure high-quality sewn book blocks.
Sealed Oil-Bath System: All cams and the main shaft run in a sealed oil-bath system, significantly reducing noise and vibration while extending component life.
Low Maintenance: The robust design minimizes wear and tear, resulting in minimal daily maintenance and reduced downtime.

Machine Details
