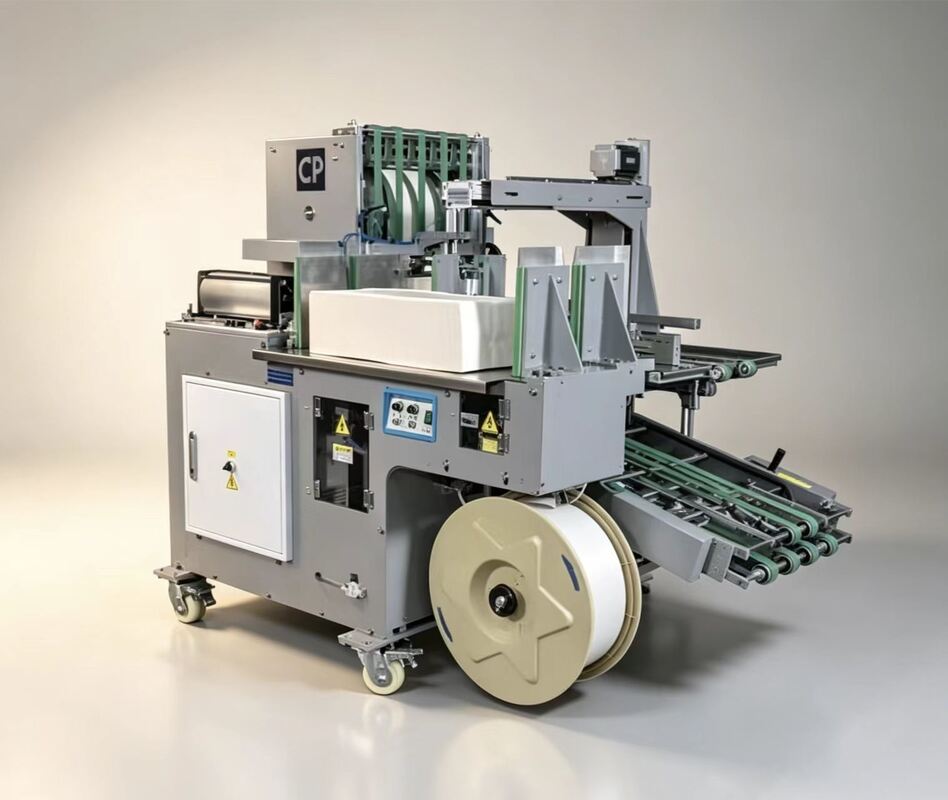

Vertical Press Stacker Bunding Delivery for Web Press and Bookbinding Lines

Name: Vertical Press Stacker Bunding Delivery for Web Press and Bookbinding Lines
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX500
Price: 14010 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 14010 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                vertical press stacker bunding delivery, web press stacker delivery machine, bookbinding line folding delivery machine


Maximum Signature Size:	460×360mm	Minimum Signature Size:	150×110mm
Power Consumption:	2.3kw	Dimensions:	1700×1000mm (L×H)
Weight:	4000kg	Bundling Press Force:	3000N

Maximum Signature Size:	460×360mm
Minimum Signature Size:	150×110mm
Power Consumption:	2.3kw
Dimensions:	1700×1000mm (L×H)
Weight:	4000kg
Bundling Press Force:	3000N

Product Description

Vertical Press Stacker Bunding Delivery for Web Press and Bookbinding Lines

Product Overview

The HX500 Vertical Stacker and Bundling Delivery is engineered to automate this critical link. By seamlessly integrating stacking, pressing, and bundling into one compact unit, it bridges the gap between folding/binding and downstream processes, ensuring a smooth, automated workflow for medium to large-scale industrial production.

A standout advantage of the HX500 is its oversized storage capacity, purpose-built for folded signatures and bound products. This design drastically reduces the frequency of manual unloading interruptions. Consequently, it maximizes machine uptime and guarantees continuous, high-speed production, making it the ultimate solution for high-volume print runs that demand uninterrupted efficiency.

Quality is guaranteed by the HX500's robust integrated pressing unit. Before bundling, this system efficiently forces out trapped air from the folded materials. By eliminating this excess air, it delivers noticeably sharper and more defined folds, completely removes unwanted wrinkles, and ensures a tightly consolidated, professional finish that elevates the integrity of your final products.

Technical Specifications

Specification	Value
Maximum Signature Size	460*360mm
Minimum Signature Size	150*110mm
Power Consumption	2.3kw
Dimensions	17001000mm (LH)
Weight	4000kg
Bundling Press Force	3000N

Key Features

Integrated design combining delivery with bundling device for one-stop stacking and bundling workflow
Customizable signature stack number settings for different order batch sizes
Automatic stack neatening and high-pressure bundling with 3000N pressure
Specifically designed for industrial signature production and large-scale manufacturing
Seamless integration with downstream processes for optimized workflow efficiency

Product Gallery

Product Video
