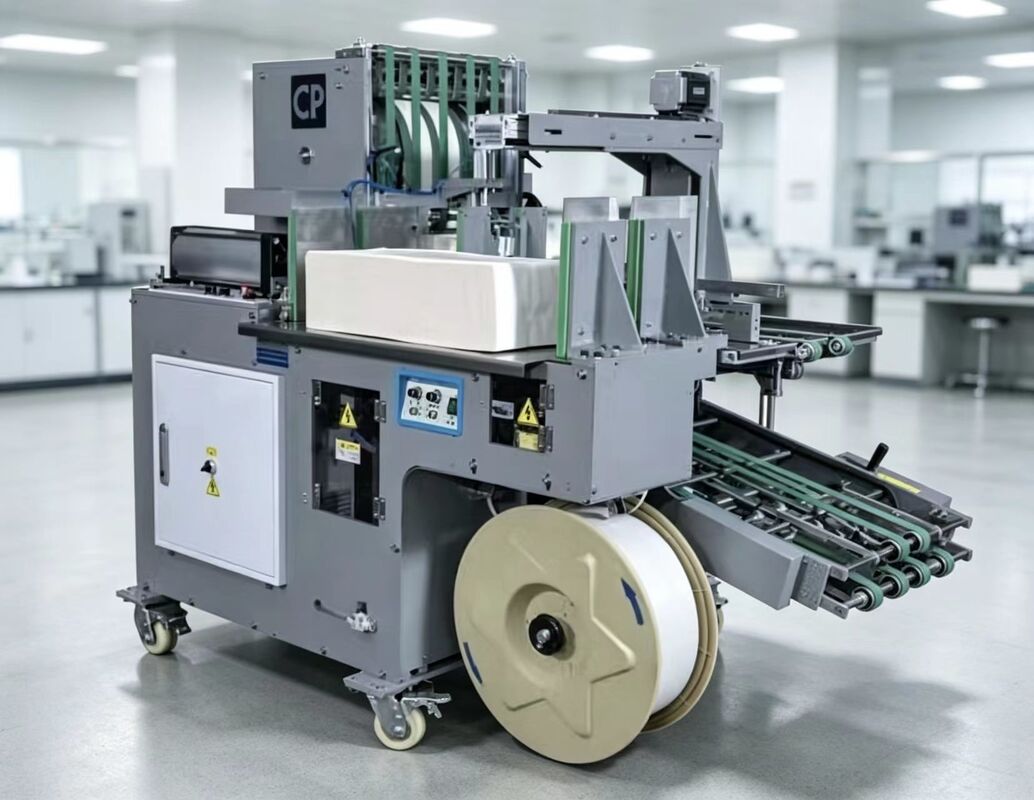

Vertical Press Stacker Bunding Delivery Air Exhaust 3000N for Book Signatures

Name: Vertical Press Stacker Bunding Delivery Air Exhaust 3000N for Book Signatures
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX500
Price: 14010 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 14010 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Vertical Press Stacker 3000N, Book Signature Bunding Machine, Air Exhaust Delivery Stacker


Maximum Signature Size:	460×360mm	Minimum Signature Size:	150×110mm
Power Consumption:	2.3kw	Dimensions:	1700×1000mm (L×H)
Weight:	4000kg	Bundling Press Force:	3000N

Maximum Signature Size:	460×360mm
Minimum Signature Size:	150×110mm
Power Consumption:	2.3kw
Dimensions:	1700×1000mm (L×H)
Weight:	4000kg
Bundling Press Force:	3000N

Product Description

Vertical Press Stacker Bunding Delivery Air Exhaust 3000N for Book Signatures

The HX500 Vertical Stacker and Bundling Delivery is engineered to automate this critical link. By seamlessly integrating stacking, pressing, and bundling into one compact unit, it bridges the gap between folding/binding and downstream processes, ensuring a smooth, automated workflow for medium to large-scale industrial production.

A standout advantage of the HX500 is its oversized storage capacity, purpose-built for folded signatures and bound products. This design drastically reduces the frequency of manual unloading interruptions. Consequently, it maximizes machine uptime and guarantees continuous, high-speed production, making it the ultimate solution for high-volume print runs that demand uninterrupted efficiency.

Quality is guaranteed by the HX500's robust integrated pressing unit. Before bundling, this system efficiently forces out trapped air from the folded materials. By eliminating this excess air, it delivers noticeably sharper and more defined folds, completely removes unwanted wrinkles, and ensures a tightly consolidated, professional finish that elevates the integrity of your final products.

Technical Specifications

Maximum Signature Size	460×360mm
Minimum Signature Size	150×110mm
Power Consumption	2.3kw
Dimensions	1700×1000mm (L×H)
Weight	4000kg
Bundling Press Force	3000N

Key Features

The HX500 stands out for its integrated design, as the delivery combines with the bundling device to realize a one-stop stacking and bundling workflow. This integration eliminates the need for separate equipment, streamlines the post-press process, and reduces operational complexity for industrial production lines.

This equipment supports setting the signature stack number according to production needs, allowing operators to customize batch sizes for different orders. After reaching the set number, the machine automatically flaps the stack neat, ensuring uniform, aligned stacks that are ready for the next bundling step.

Once the stack is neat, the HX500 automatically pushes it to the bundling station, where it performs pressing and bundling of folded sheets (signatures), brochures, book blocks, and other products with 3000N pressure. This high-pressure bundling ensures tight, stable bundles that are easy to store, transport, and process in subsequent steps.

The HX500 Vertical Stacker and Bundling Delivery is specifically fitting for industrial signature production, designed to handle the high-volume demands of large-scale manufacturing. Its stable performance, automatic operation, and high-pressure bundling make it reliable for long-running production tasks.

As a professional post-press equipment, the HX500 is perfect for the next post-press production, seamlessly connecting to downstream processes such as binding, packaging, or shipping. It optimizes workflow efficiency, reduces labor input, and ensures consistent product quality, making it an indispensable asset for printing and binding enterprises.
