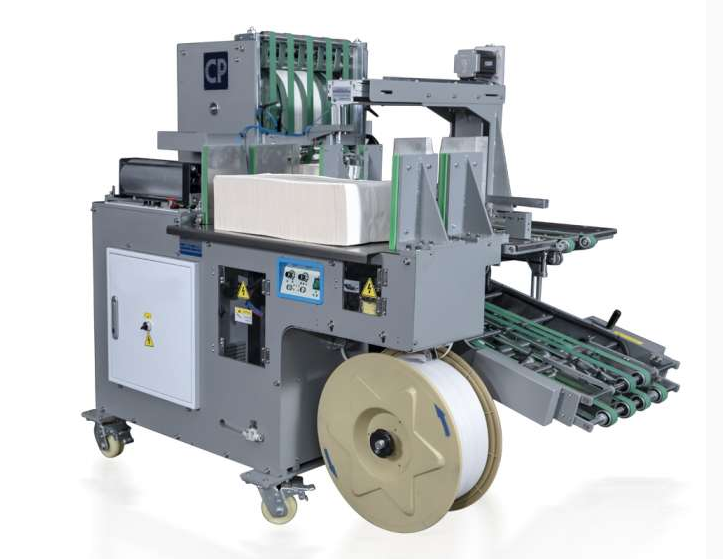

Vertical Press Stacker and Bunding Delivery 3000N for Folding Signatures Book Blocks

Name: Vertical Press Stacker and Bunding Delivery 3000N for Folding Signatures Book Blocks
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX500
Price: 14010 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 14010 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Vertical press stacker 3000N, Bunding delivery machine for signatures, Folding signatures book block stacker


Maximum Signature Size:	460×360mm	Minimum Signature Size:	150×110mm
Power Consumption:	2.3kw	Dimensions:	1700×1000mm (L×H)
Weight:	4000kg	Bundling Press Force:	3000N

Maximum Signature Size:	460×360mm
Minimum Signature Size:	150×110mm
Power Consumption:	2.3kw
Dimensions:	1700×1000mm (L×H)
Weight:	4000kg
Bundling Press Force:	3000N

Product Description

Vertical Press Stacker and Bundling Delivery 3000N for Folding Signatures Book Blocks

In industrial signature production, efficient stacking, bundling and delivery are key to streamlining post-press workflows. The HX500 Vertical Stacker and Bundling Delivery integrates storage, pressing and bundling functions, ideal for medium to large runs, ensuring stable performance and seamless connection to subsequent post-press processes.

High Capacity Storage

The HX500 Vertical Stacker and Bundling Delivery is equipped with a high storage capacity specifically for folded or bound products. This large storage space eliminates frequent unloading interruptions, making it particularly suitable for the processing of medium to large runs, and ensuring continuous, efficient production for high-volume industrial signature manufacturing.

Integrated Pressing Unit

A core feature of the HX500 is its integrated pressing unit, which effectively exhausts air from folded or bound products to improve the folding quality. By removing trapped air, the pressing unit ensures sharper, more defined folds, eliminates wrinkles, and maintains the integrity of the finished products, enhancing overall quality and professionalism.

Technical Specifications

Maximum Signature Size	460×360mm
Minimum Signature Size	150×110mm
Power Consumption	2.3kw
Dimensions	1700×1000mm (L×H)
Weight	4000kg
Bundling Press Force	3000N

Integrated Stacking and Bundling

The HX500 stands out for its integrated design, as the delivery combines with the bundling device to realize a one-stop stacking and bundling workflow. This integration eliminates the need for separate equipment, streamlines the post-press process, and reduces operational complexity for industrial production lines.

Customizable Batch Sizes

This equipment supports setting the signature stack number according to production needs, allowing operators to customize batch sizes for different orders. After reaching the set number, the machine automatically flaps the stack neat, ensuring uniform, aligned stacks that are ready for the next bundling step.

High-Pressure Bundling

Once the stack is neat, the HX500 automatically pushes it to the bundling station, where it performs pressing and bundling of folded sheets (signatures), brochures, book blocks, and other products with 3000N pressure. This high-pressure bundling ensures tight, stable bundles that are easy to store, transport, and process in subsequent steps.

Industrial Production Ready

The HX500 Vertical Stacker and Bundling Delivery is specifically fitting for industrial signature production, designed to handle the high-volume demands of large-scale manufacturing. Its stable performance, automatic operation, and high-pressure bundling make it reliable for long-running production tasks.

Seamless Post-Press Integration

As a professional post-press equipment, the HX500 is perfect for the next post-press production, seamlessly connecting to downstream processes such as binding, packaging, or shipping. It optimizes workflow efficiency, reduces labor input, and ensures consistent product quality, making it an indispensable asset for printing and binding enterprises.
