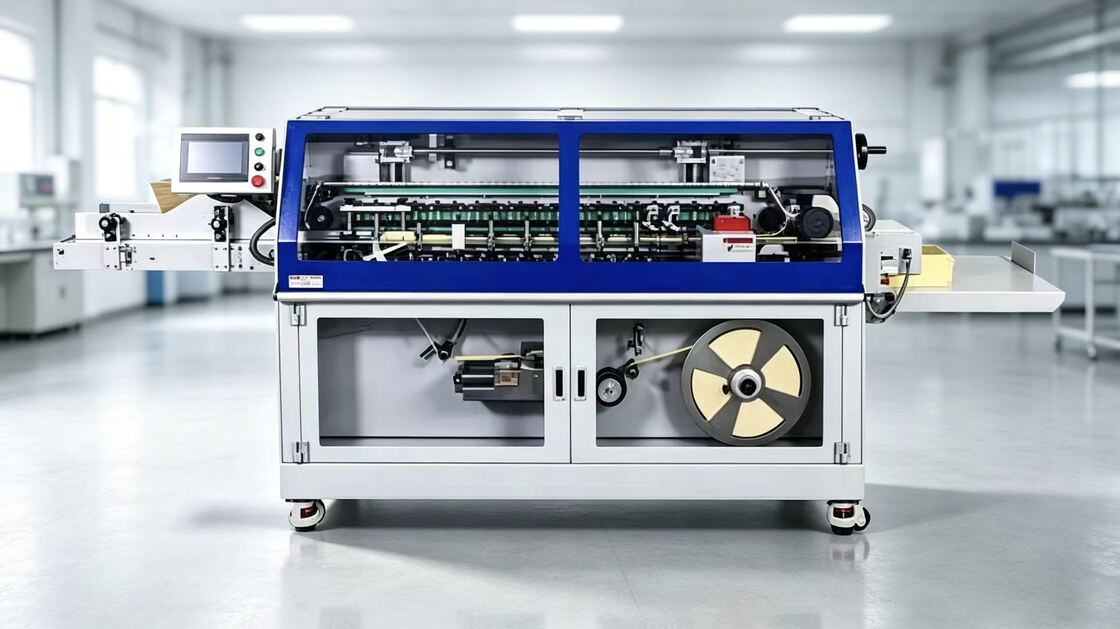

HX500B Book Back Spine Taping Machine Hardcover Book Spine Taping Machine

Name: HX500B Book Back Spine Taping Machine Hardcover Book Spine Taping Machine
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX500B
Price: 12,000.00 USD
Availability: InStock

Product Details

Brand Name: HXCP

Certification: CE

Model Number: HX500B

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                HX500B hardcover book spine taping machine, book back spine taping machine with warranty, hardcover book spine taping equipment


Book Width Range:	120-400mm	Book Thickness Range:	3-30mm
Dimensions:	3400×880×1300mm(L×W×H)	Power:	2.0kw
Book Length Range:	100-800mm	Speed:	5-20m/min
Power Supple:	AC380V	Weight:	700kg

Book Width Range:	120-400mm
Book Thickness Range:	3-30mm
Dimensions:	3400×880×1300mm(L×W×H)
Power:	2.0kw
Book Length Range:	100-800mm
Speed:	5-20m/min
Power Supple:	AC380V
Weight:	700kg

Product Description

HX500B Book Back Spine Taping Machine Hardcover Book Spine Taping Machine

Product Overview

The HX500B Book Back Spine Taping Machine is a versatile and highly efficient solution designed for spine taping on softcover notebooks, exercise books, notepads, and receipt books. It is equally capable of precision gluing and pasting for book block spine paper or gauze. Operating at continuous speeds of 5 to 20 meters per minute (approx. 16-40 pcs/min), it delivers consistent, high-quality results, making it an essential and reliable addition to any streamlined post-press binding workflow.

Machine Features

Whole computerized digital function and malfunctioning display
Automatic gluing, positioning, and edge folding
Automatic oil lubrication system
Fast mold changing system
Intelligent control glue pre-heating device
Number display adjustment setting
Glue recycling device
Board plate micro-adjusting device
Automatic feeder adjusting device
Taiwan BBM motor, IDELY transducer control system
Automatic conveyor and cutting device of soft spine paper
OMRON PLC, conveyor touch screen, and transducer control system
Safety covers
Moveable cloth feeder device (Optional)
Multi-papers suction feeder device (Optional)
Irregular board size device (Max 7 boards) (Optional)
Automatic board feeder device (Optional)
Cover corner cutter (Optional)

Technical Specifications

Parameter	Specification
Machine Size	3400×880×1300 (mm)
Power Supply	AC 380V
Power	2.0kw
Net Weight	700kg
Diameter	L:100mm-800mm W:120mm-500mm
Thickness	2-30mm
Fastest Speed	24m/min

Product Applications

Detailed Views
