HX500PB1 Digital Perfect Binding Machine Single Clamp 500 Cycles/hour 1-50mm Thickness

Name: HX500PB1 Digital Perfect Binding Machine Single Clamp 500 Cycles/hour 1-50mm Thickness
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX500PB1
Price: 30000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Model Number: HX500PB1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 30000 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Digital perfect binding machine 500 cycles/hour, Single clamp binding machine 1-50mm thickness, Notebook making machine with perfect binding


Number Of Clamps:	1	Max Book Block Size:	320×320mm
Min Book Block Size:	135×105mm	Max Cover Size:	320×660mm
Front Part Of Book Clamp Reach:	120mm	Rear Part Of Book Clamp Reach:	110mm
Min Cover Size:	135×230mm	Max Production Speed:	500 Cycles/hour

Number Of Clamps:	1
Max Book Block Size:	320×320mm
Min Book Block Size:	135×105mm
Max Cover Size:	320×660mm
Front Part Of Book Clamp Reach:	120mm
Rear Part Of Book Clamp Reach:	110mm
Min Cover Size:	135×230mm
Max Production Speed:	500 Cycles/hour

Product Description

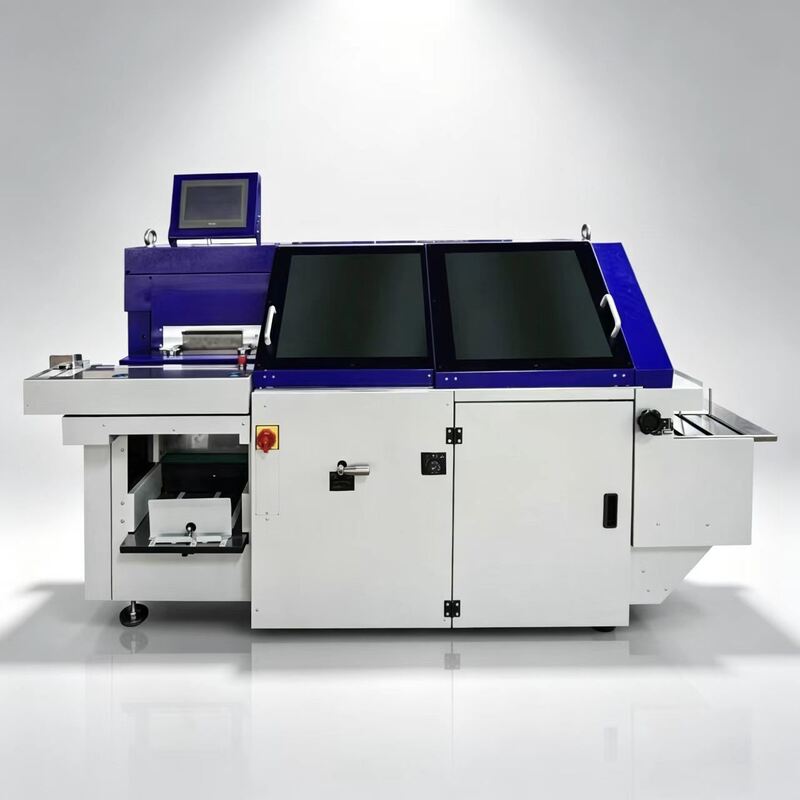

HX500PB1 Digital Perfect Binding Machine

Single Clamp | 500 Cycles/hour | 1-50mm Thickness

The HX500PB1 Digital Perfect Binding Machine is a high-precision single-clamp binding system specifically engineered for modern digital printing and personalized finishing requirements. This integrated machine handles clamping, gluing, cover creasing, and nipping processes in one streamlined operation, making it ideal for short-run, variable data, and book-of-one production scenarios.

Automated Workflow

This machine integrates all core finishing procedures into one fully automated workflow, including automatic book clamping, spine preparation, precise gluing, cover creasing, and tight nipping. The all-in-one streamlined process eliminates cumbersome standalone operations, simplifies binding workflows, and enhances production efficiency while ensuring uniform, high-quality book binding results.

Intelligent Control System

Equipped with a built-in precision caliper and intuitive 15-inch touchscreen, the HX500PB1 features intelligent automatic parameter setting. The system automatically matches key operating parameters based on book specifications, significantly reducing manual adjustments and order changeover time. Custom parameter templates can be stored for one-click recall of recurring orders, enhancing production flexibility and operational convenience.

Key Features

Tailored for digital short-run printing with frequent size and thickness replacement
All core finishing steps completed automatically in one station
15-inch intelligent touch control with auto thickness detection
Storable parameter templates for one-click recall of recurring specifications
Reserved inline connection ports for peripheral equipment integration

Technical Specifications

Number of Clamps	1
Max Book Block Size	320×320mm
Min Book Block Size	135×105mm
Max Cover Size	320×660mm
Front Part of Book Clamp Reach	350mm
Rear Part of Book Clamp Reach	310mm
Min Cover Size	135×230mm
Book Block Thickness	1-50mm
Cover Paper Thickness	82-302gsm
Max Cover Stacking Height	70mm
Glue Temperature Range	120-180℃ (170℃ or below, parameter adjustment by service personnel required)
Max Production Speed	500 cycles/hour
Power Supply	3 Phase, 400V (converted to 200V via transformer), 50/60Hz
Machine Dimensions (without cover table extension)	2295×860×1545mm (L×W×H)
Machine Dimensions (with cover table extension)	2430×910×1545mm (L×W×H)

System Integration

With excellent expandability and compatibility, the machine supports inline docking with trimmers and automatic feeding systems. It can be seamlessly integrated into full digital finishing production lines to enable fully automated upstream and downstream linkage operations. Designed for high-flexibility digital printing scenarios, it minimizes production downtime, reduces manual intervention, and helps printing enterprises maximize production efficiency for variable and short-run customized orders.

Application Benefits

Featuring wide thickness compatibility, intelligent automatic setup, integrated full-process binding, and flexible line matching capability, the HX500PB1 provides a high-efficiency, low-cost, and high-precision perfect binding solution for modern digital printing factories. It fully meets the diversified personalized book production needs of today's market.
