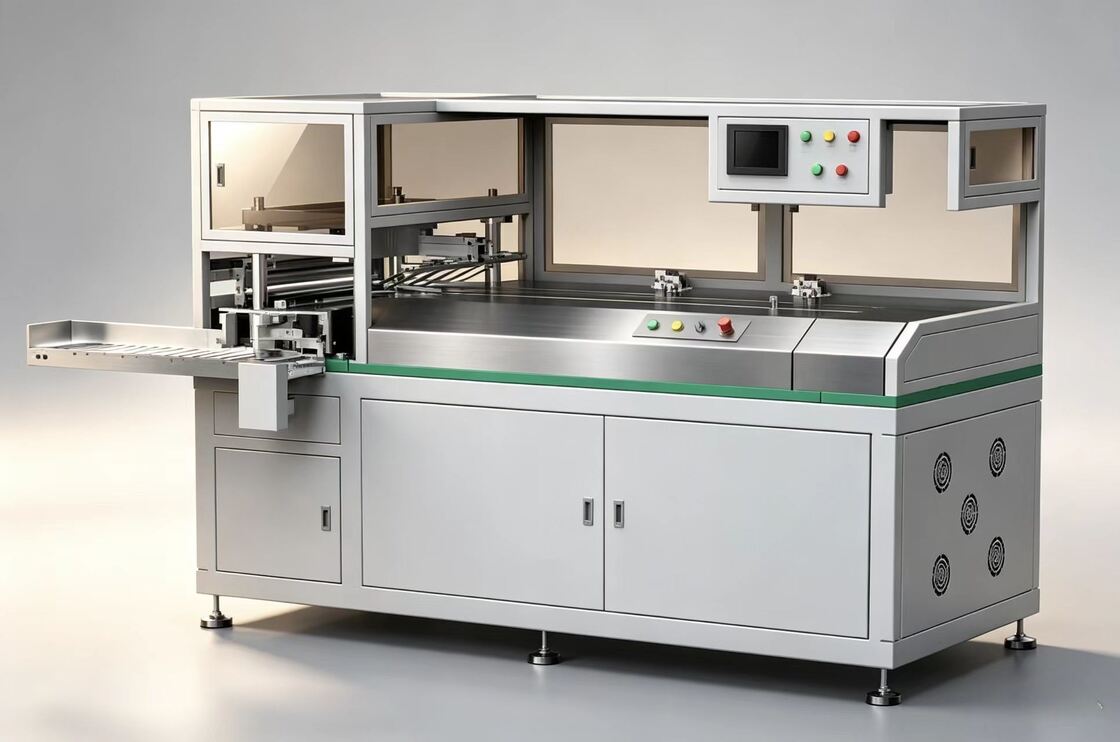

HX80PKP Ancillary Machine Semi Automatic Punching Machine for Paper Plastic Cards

Name: HX80PKP Ancillary Machine Semi Automatic Punching Machine for Paper Plastic Cards
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX80PKP
Price: 191475.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Model Number: HX80PKP

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                semi automatic punching machine for cards, paper plastic card punching machine, ancillary machine for card punching


Max Sheet Format:	1100×700mm(L×W)	Min Sheet Format:	550×450mm(L×W)
Max Punched Card Size:	210×210mm	Min Punched Card Size:	54×54mm
Punching Pressure:	14-25T	Positioning Accuracy:	±0.10mm
Productivity:	15000-30000pcs/h	Applicable Card Materials:	Paper Card, PVC, ABS, PET, Etc.
Control:	PLC Control + Servo System	Drive:	Servo/Hydraulic System
Air Consumption:	30L/min	Power Supply:	AC 380V/50HZ
Total Power:	8KW	Dimension:	2800×1500×1700mm(L×W×H)
Weight:	1500KG

Max Sheet Format:	1100×700mm(L×W)
Min Sheet Format:	550×450mm(L×W)
Max Punched Card Size:	210×210mm
Min Punched Card Size:	54×54mm
Punching Pressure:	14-25T
Positioning Accuracy:	±0.10mm
Productivity:	15000-30000pcs/h
Applicable Card Materials:	Paper Card, PVC, ABS, PET, Etc.
Control:	PLC Control + Servo System
Drive:	Servo/Hydraulic System
Air Consumption:	30L/min
Power Supply:	AC 380V/50HZ
Total Power:	8KW
Dimension:	2800×1500×1700mm(L×W×H)
Weight:	1500KG

Product Description

HX80PKP Ancillary Machine Semi Automatic Punching Machine for Paper Plastic Cards

Product Overview

The HX80PKP Semi Auto Paper Plastic Card Punching Machine is engineered to punch cards from various materials including paper, PVC, ABS, PET, and more. It accommodates card sizes ranging from 54×54mm to 210×210mm. The machine features bi-directional X and Y axis alignment for precise positioning, enabling card shapes and round corners to be punched and formed in a single operation. This semi-automatic punching machine automatically handles punched card collection and scrap removal for efficient continuous operation.

Technical Specifications

Model Name	HX80PKP
Max Sheet Format	1100×700mm(L×W)
Min Sheet Format	550×450mm(L×W)
Max Punched Card Size	210×210mm
Min Punched Card Size	54×54mm
Punching Pressure	14-25T
Positioning Accuracy	±0.10mm
Productivity	15000-30000pcs/h
Applicable Card Materials	Paper Card, PVC, ABS, PET, etc.
Control	PLC Control + Servo System
Power Supply	AC 380V/50HZ
Dimension	2800×1500×1700mm(L×W×H)
Weight	1500kg

Key Features

Compatible with paper, PVC, ABS, PET and other plastic sheet materials
Supports card sizes from 54×54mm to 210×210mm
X and Y axis bi-directional alignment ensures precise positioning
Card shape and round corners punched in one single step
Automatic card collection and scrap removal for continuous operation
Semi-automatic design balances productivity with cost-effectiveness
Sturdy construction for long-term reliability and low maintenance
Easy setup and user-friendly controls for quick size changeovers
