Product Details
Place of Origin: China
Brand Name: HXCP
Certification: CE
Model Number: HX100
Document: HX100.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 13000 per set
Packaging Details: Stretch Film with Wooden Case
Delivery Time: 10 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 100 sets/month
Max. Block Size: |
570×450mm |
Min. Block Size: |
90×90mm |
Block Thickness Range: |
2-80mm |
Feeding Speed: |
100 Pcs/min |
Max. Pile Height: |
350mm |
Dimension: |
2140×970×1410mm(L×W×H) |
Control System: |
PLC Control With Touch Screen Interface |
Safety Features: |
Emergency Stop Button, Safety Light Curtains, And Safety Fences |
Warranty: |
1 Year |
Function: |
Automated Feeding, Stacking, And Palletizing Of Products |
Max. Block Size: |
570×450mm |
Min. Block Size: |
90×90mm |
Block Thickness Range: |
2-80mm |
Feeding Speed: |
100 Pcs/min |
Max. Pile Height: |
350mm |
Dimension: |
2140×970×1410mm(L×W×H) |
Control System: |
PLC Control With Touch Screen Interface |
Safety Features: |
Emergency Stop Button, Safety Light Curtains, And Safety Fences |
Warranty: |
1 Year |
Function: |
Automated Feeding, Stacking, And Palletizing Of Products |

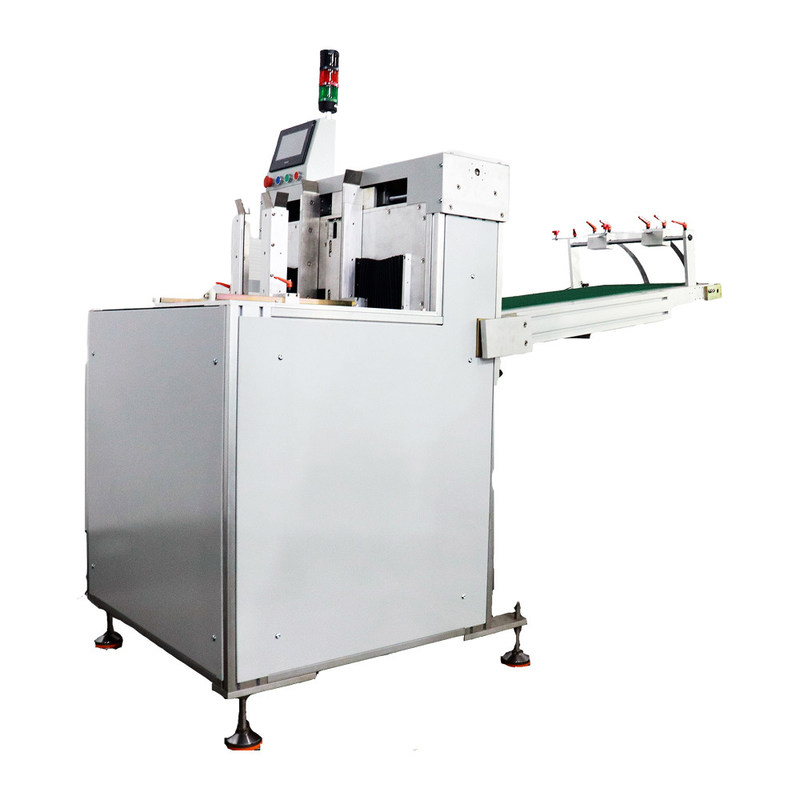

The HX100 Automatic Block Feeding Machine is designed for integration with perfect binding lines, hardcover book binding lines, block back gluing lines, and ribbon inserting machines. Simply place book blocks into the stack, and the machine will automatically split and push them to feed one by one. This smart and functional solution is ideal for bookbinding production with a book block thickness range of 2-80mm and feeding speeds up to 100 pieces per minute.
Fits most kinds of book blocks including sewn book blocks, perfect binding book blocks, and board book blocks.
Compatible with mainstream book binding lines:
| Parameter | Specification |
|---|---|
| Maximum Block Size | 570×450mm |
| Minimum Block Size | 90×90mm |
| Block Thickness Range | 2-80mm |
| Feeding Speed | 100 pcs/min |
| Maximum Pile Height | 350mm |
| Dimensions (L×W×H) | 2140×970×1410mm |
