HXPD280 Four-Head Paper Driller With 50mm Capacity And Adjustable Hole Spacing 40-280mm

Name: HXPD280 Four-Head Paper Driller With 50mm Capacity And Adjustable Hole Spacing 40-280mm
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HXPD280
Price: 191,475.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HXPD280

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Four-head paper driller with 50mm capacity, Adjustable hole spacing paper driller, Notebook making machine with warranty


Max. Drilling Thickness:	50 Mm	Hole Distance Range:	40–280 Mm
Margin Adjustment Range:	6–40 Mm	Drilling Diameter:	3–10 Mm
Spindle Speed:	2800 R/min	Voltage & Power:	220V, 50Hz / 1.1 KW
Standard Air Pressure:	0.6 MPa	Worktable Size:	600 × 330 Mm
Worktable Travel:	200 Mm	Machine Dimensions:	640 × 600 × 1240 Mm
Net Weight:	180 Kg

Max. Drilling Thickness:	50 Mm
Hole Distance Range:	40–280 Mm
Margin Adjustment Range:	6–40 Mm
Drilling Diameter:	3–10 Mm
Spindle Speed:	2800 R/min
Voltage & Power:	220V, 50Hz / 1.1 KW
Standard Air Pressure:	0.6 MPa
Worktable Size:	600 × 330 Mm
Worktable Travel:	200 Mm
Machine Dimensions:	640 × 600 × 1240 Mm
Net Weight:	180 Kg

Product Description



HXPD280 Four Head Paper Drilling Machine

HXPD280 Four-Head Paper Driller With 50mm Capacity And Adjustable Hole Spacing 40-280mm

Description

The HXPD280 Four-Head Paper Drilling Machine performs synchronous multi-hole drilling on document stacks for print shops and binderies. Driven by a pneumatic cylinder on guide columns and linear sliders, the machine processes stock up to 50 mm thick using 3–10 mm drill bits. Setup configuration allows manual adjustment of the vertical stroke, individual head positions for hole distances (40–280 mm), back margins (6–40 mm), and lateral worktable positioning (200 mm travel) to accommodate varying paper formats.

Features:

Product Name: HXPD280 Four-Head Paper Drilling Machine
Function: Performs synchronous multi-hole drilling on document stacks
Applications: Print shops and binderies
Drive System: Pneumatic cylinder on guide columns and linear sliders
Drilling Capacity: Processes stock up to 50 mm thick
Drill Bits: 3–10 mm diameter bits
Head Positioning: Manual adjustment of individual head positions for hole distances (40–280 mm)
Stroke Adjustment: Manual adjustment of vertical stroke
Back Margin: Adjustable from 6–40 mm
Worktable: Lateral positioning with 200 mm travel to accommodate varying paper formats
Efficiency: Synchronous drilling for consistent and accurate hole patterns

Keywords: Paper Drilling Machine, Four-Head Driller, HXPD280, Document Drilling, Multi-Hole Drilling, Pneumatic Paper Driller, Adjustable Hole Spacing, Print Shop Equipment, Binderies

Application:

Document Filing: Drilling multi-hole patterns for ring binders, lever arch files, and suspension files
Notebook & Exercise Book Production: Creating holes for wire-O binding and spiral binding
Catalog & Manual Finishing: Drilling documents for presentation folders and product manuals
Stationery Manufacturing: Hole drilling for calendars, diaries, and custom stationery
Print Shop Drilling: High-volume drilling for office documents and binding preparation

Support and Services:

The HXPD280 Four-Head Paper Drilling Machine performs synchronous multi-hole drilling on document stacks for print shops and binderies. Driven by a pneumatic cylinder on guide columns and linear sliders, the machine processes stock up to 50 mm thick using 3–10 mm drill bits. Setup configuration allows manual adjustment of the vertical stroke, individual head positions for hole distances (40–280 mm), back margins (6–40 mm), and lateral worktable positioning (200 mm travel) to accommodate varying paper formats. Our technical support and services team is available to assist with any questions or issues related to the operation, maintenance, and repair of the machine. We offer a range of services to ensure that your machine is operating at its best, including:

Installation and setup assistance
Ongoing technical support via phone or email
Regular maintenance and servicing
Repairs and replacement parts
Training and education for machine operators

Our team of experienced technicians is dedicated to providing prompt and reliable support, so you can focus on your business operations with confidence. Contact us today to learn more about our technical support and services for the HXPD280 Four-Head Paper Drilling Machine.

Products Show

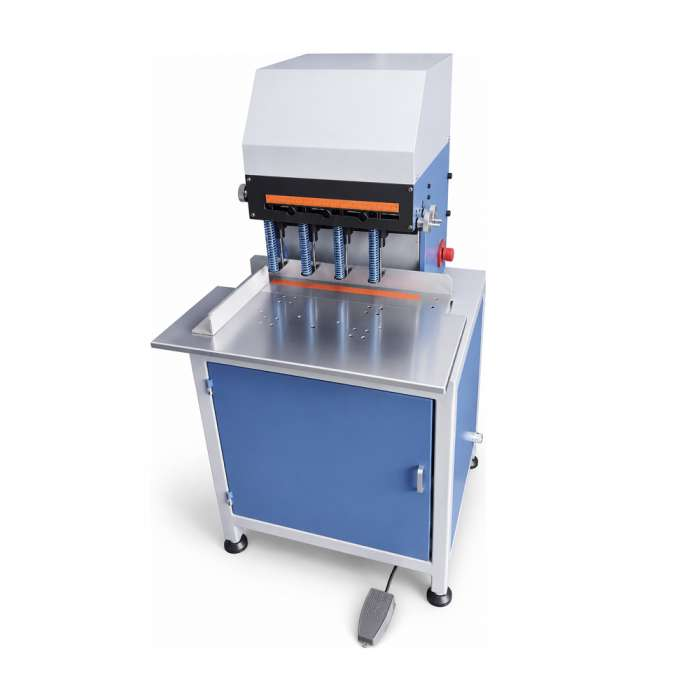

HXPD280 Four-Head Paper Driller With 50mm Capacity And Adjustable Hole Spacing 40-280mm

HXPD280 Four-Head Paper Driller With 50mm Capacity And Adjustable Hole Spacing 40-280mm Details

HXPD280 Four-Head Paper Driller With 50mm Capacity And Adjustable Hole Spacing 40-280mm

FAQ

Q1 : Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.

Q2: what's your guarantee or the warranty of the quality if we buy your machines?

A: We can offer high quality machines with 1 year guarantee and supply life-long technical supports.

Q3: when can i get my machine after l paid?
A: The delivery time is based on the exact machine you confrmed.

Q4: How can i install my machine when it arrives?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q5: what's your delivery time?
A: Depending on the type of machines, duration of 15 days to 60 days from the date ofcontract.

Q6: Do you have after-sales support?
A: Yes, we are happy to give advice adn we also have skilled technicians avaliable across the world, we need your machines running in order to keep your business running.

Q7: How about the spare parts?
A: After we deal down all the things. we will offer you a spare parts list for your reference.

Q8: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifcations, using top components.

Q9: what will you do if the machien is broken:
A: Our machine'waranty period is 12 months, if the brokend parts can't repaird , we cansend the beyond the warranty period, we can send the new parts replace the broken partsfor free, but you need to pay the express cost. It is beyond the waranty period, we cannegotiate to solve the problems, and we supply the technical support for the whole life ofthe equipment.

Q10: Can you be responsible for transport?
A: Yes , please tell me the destination port or address, we have rich experience intransporting.
