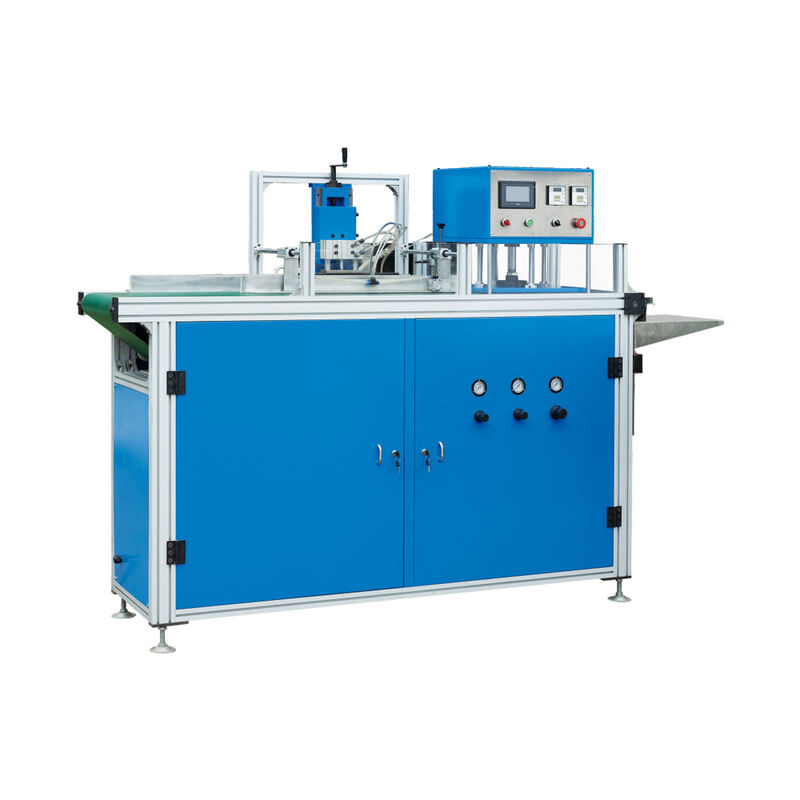

HX420FN Automatic Hardcover Press Nipper For Bookbinding

Name: HX420FN Automatic Hardcover Press Nipper For Bookbinding
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX420FN
Price: 5200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX420FN

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 5200 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HX420FN automatic hardcover press nipper, bookbinding flattening and nipping machine, HX420FN bookbinding machine with warranty


Max Book Size:	420×330mm	Speed:	10-20pcs/min
Book Thickness:	5-80mm	Motor Power:	1.25Kw
Dimensions:	2000×550×1360mm	Machine Weight:	300kg

Max Book Size:	420×330mm
Speed:	10-20pcs/min
Book Thickness:	5-80mm
Motor Power:	1.25Kw
Dimensions:	2000×550×1360mm
Machine Weight:	300kg

Product Description



HX420FN Flattening and Nipping Machine

HX420FN Automatic Hardcover Press Nipper For Bookbinding 1

Description

HX420FN Flattening and Nipping Machine is used for hardcover books position, pneumatic flat pressing, heating, and nipping, can be connected to the hardcover casing in machine or manual feeding, and the pneumatic pressure and heating time can be adjusted, easy to operate and high efficiency.

Features:

Product Name: HX420FN Flattening and Nipping Machine
Function: Used for hardcover book positioning, pneumatic flat pressing, heating, and nipping
Integration: Can be connected to hardcover casing-in machine or used with manual feeding
Adjustability: Pneumatic pressure and heating time can be adjusted
Operation: Easy to operate
Efficiency: High efficiency for hardcover binding workflows
Applications: Ideal for hardcover book finishing and casing-in lines

Keywords: Flattening and Nipping Machine, HX420FN, Hardcover Book Press, Pneumatic Nipping, Heating Nipping, Casing-In Line, Book Positioning, Binding Finish

Application:

Hardcover Book Binding: Flattening and nipping hardcover books after casing-in for professional finish
Photo Album Production: Pressing and nipping photo album covers and book blocks for flatness
Notebook & Diary Finishing: Applying heat and pressure to notebook spines for crisp creases
Casing-In Line Integration: Inline connection with hardcover casing-in machines for automated workflow
Manual Binding Stations: Standalone use with manual feeding for small batch or custom hardcover production

Support and Services:

The HX420FN Flattening and Nipping Machine is used for hardcover book positioning, pneumatic flat pressing, heating, and nipping. It can be connected to the hardcover casing-in machine or used with manual feeding. The pneumatic pressure and heating time can be adjusted, making it easy to operate and highly efficient for hardcover binding. Our technical support and services team is available to assist with any questions or issues related to the operation, maintenance, and repair of the machine. We offer a range of services to ensure that your machine is operating at its best, including:

Installation and setup assistance
Ongoing technical support via phone or email
Regular maintenance and servicing
Repairs and replacement parts
Training and education for machine operators

Our team of experienced technicians is dedicated to providing prompt and reliable support, so you can focus on your business operations with confidence. Contact us today to learn more about our technical support and services for the HX420FN Flattening and Nipping Machine.

Products Show

HX420FN Automatic Hardcover Press Nipper For Bookbinding 2

HX420FN Automatic Hardcover Press Nipper For Bookbinding 3

HX420FN Automatic Hardcover Press Nipper For Bookbinding 4

HX420FN Automatic Hardcover Press Nipper For Bookbinding 5 Details

HX420FN Automatic Hardcover Press Nipper For Bookbinding 6

FAQ

Q1 : Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.

Q2: what's your guarantee or the warranty of the quality if we buy your machines?

A: We can offer high quality machines with 1 year guarantee and supply life-long technical supports.

Q3: when can i get my machine after l paid?
A: The delivery time is based on the exact machine you confrmed.

Q4: How can i install my machine when it arrives?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.

Q5: what's your delivery time?
A: Depending on the type of machines, duration of 15 days to 60 days from the date ofcontract.

Q6: Do you have after-sales support?
A: Yes, we are happy to give advice adn we also have skilled technicians avaliable across the world, we need your machines running in order to keep your business running.

Q7: How about the spare parts?
A: After we deal down all the things. we will offer you a spare parts list for your reference.

Q8: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifcations, using top components.

Q9: what will you do if the machien is broken:
A: Our machine'waranty period is 12 months, if the brokend parts can't repaird , we cansend the beyond the warranty period, we can send the new parts replace the broken partsfor free, but you need to pay the express cost. It is beyond the waranty period, we cannegotiate to solve the problems, and we supply the technical support for the whole life ofthe equipment.

Q10: Can you be responsible for transport?
A: Yes , please tell me the destination port or address, we have rich experience intransporting.
