HX350 Wire Stitch Folder Gather Sheets Fold Spine 2500-3000 Cycles/Min

Name: HX350 Wire Stitch Folder Gather Sheets Fold Spine 2500-3000 Cycles/Min
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX350
Price: 8300 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX350

Payment & Shipping Terms

Minimum Order Quantity: 1 per

Price: USD 8300 set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 100 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                HX350 wire binding machine with warranty, Single wire stitch folder gather sheets, Wire binding machine 2500-3000 cycles/min


Paper Width:	125-340mm	Paper Length:	200-590mm
Max Products Size:	340×295mm	Min Product Size:	125×100mm
Binding Thickness:	0.2-13mm	Binding Speed:	2500-3000times/min

Paper Width:	125-340mm
Paper Length:	200-590mm
Max Products Size:	340×295mm
Min Product Size:	125×100mm
Binding Thickness:	0.2-13mm
Binding Speed:	2500-3000times/min

Product Description

HX350 Wire Stitch Folder Gather Sheets Fold Spine 2500-3000 Cycles/Min

Product Overview

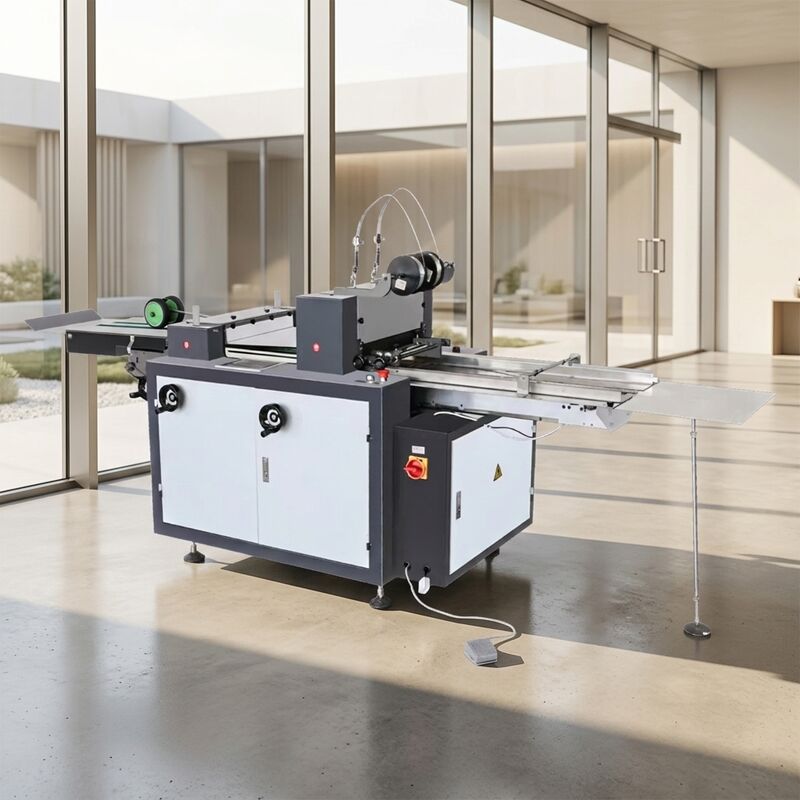

The HX350 Wire Stitching Folding Machine is an integrated booklet making system that gathers sheets in sequence, stitches them with flat wire using two stitching heads, folds to create the spine, and delivers finished booklets - all automatically. Designed for thinner magazines, catalogs, and booklets, this machine combines auto feeding, stitching, and folding into one compact, easy-to-operate unit. Only one operator is needed.

Pre-collated sheets are loaded into the auto feeder. The gatherer collects the correct sequence and transfers the set to the stitching station. Two flat wire stitching heads drive staples through the spine area. The stitched set then enters the folding section, where rollers or knives create a precise spine fold. The finished booklet is delivered onto a stacker or conveyor.

Core Advantages

Combines stitching and folding in single pass operation
Two flat wire stitching heads ensure strong binding
Gather sequence maintained by auto feeder system
Output speed up to 3000 books per minute
Reduces handling time with automated collection
Ideal for catalogs booklets and thin magazines

Key Features

Gathers, stitches with flat wire, then folds
Two stitching heads for secure booklet binding
Auto feeder handles 60-200 gsm paper
Produces 30-80 booklets per minute
Flat wire staples lie flush on spine
Ideal for thin magazines and catalogs
Tool-less changeover for different sizes
Only one operator required for full line
Compact footprint saves workshop space
Optional third head and trimmer available

Technical Specifications

Parameter	Specification
Model	HX350 Wire Stitching Folding Machine
Product Name	HX350 Wire Stitching Folding Machine
Type	HX350
Machine Dimensions	2600x700x750mm
Max Products Size	340x295mm
Binding Thickness	0.2-13mm
Binding Speed	2500-3000 times/min
Max Folding Paper Pages	30x80gsm
Wire Cross Section	1.5mm
Paper Length	200-590mm
Min Product Size	125x100mm
Stitching Paper Pages	2-30(x80gsm)

Applications

Typical application occasions for the HX350 Wire Stitching Folding Machine include production of thin magazines, product catalogs, event programs, instruction booklets, sales brochures, and any saddle-stitched publication where gathering, stitching, and folding must be done quickly and consistently.

The integrated design - gather, stitch, fold, deliver - eliminates manual collating and hand folding, making it especially valuable for print shops that produce short to medium runs of booklets (500-10,000 copies) with frequent job changes. It excels in digital print shops and small to medium-sized binderies where job diversity and fast turnaround are critical.

Frequently Asked Questions

What is the brand and model number?

Brand: HXCP, Model: HXCP

Where is it manufactured?

Made in China

What certifications does it have?

CE certified

What is the minimum order quantity and price?

Minimum order: 1 set, Price: USD 8300 per set

What payment terms are accepted?

L/C, D/A, D/P, T/T, and Western Union

What is the supply capacity and delivery time?

Supply ability: 10 sets per month, Delivery time: 30 days

How is it packaged for shipping?

Stretch film and wooden case packaging
