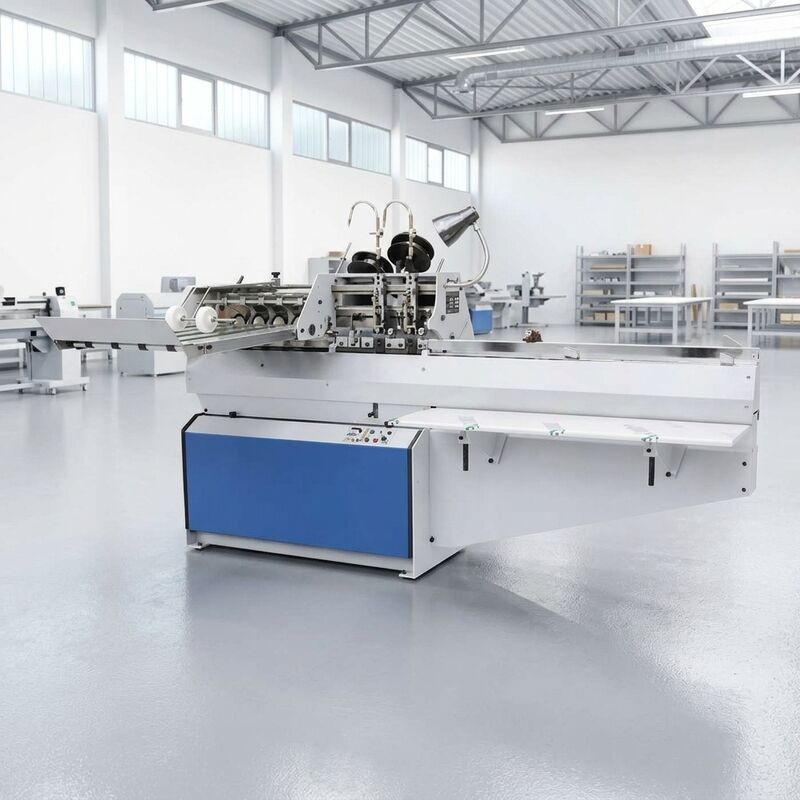

HX450S Semi Auto Saddle Stitcher Photoelectric Anti Miss Stitch Stitching Head Protection

Name: HX450S Semi Auto Saddle Stitcher Photoelectric Anti Miss Stitch Stitching Head Protection
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX450S
Price: 4400 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX450S

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 4400 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                semi auto saddle stitcher machine, photoelectric anti miss stitch head, notebook stitching machine with protection


Machine Dimensions:	2200 × 1320 × 1350 Mm	Stitching Speed:	15–100 Cycles/min
Stitch Crown Width:	13 Mm	Max. Binding Thickness:	4 Mm
Stitch Center Distance:	45–270 Mm	Max. Binding Size:	450 × 305 Mm

Machine Dimensions:	2200 × 1320 × 1350 Mm
Stitching Speed:	15–100 Cycles/min
Stitch Crown Width:	13 Mm
Max. Binding Thickness:	4 Mm
Stitch Center Distance:	45–270 Mm
Max. Binding Size:	450 × 305 Mm

Product Description

HX450S Semi Auto Saddle Stitcher Photoelectric Anti Miss Stitch Stitching Head Protection

The HX450S Semi Auto Saddle Stitcher is professional post-press wire binding equipment designed for saddle stitching of booklets, pictorials and magazines.

Product Overview

After manual collating of signatures, the machine can automatically finish signature feeding, wire stitching and finished product collection. It supports one-pass production of both 1-up and 2-up layouts. The equipment is equipped with two standard US M200 stitching heads and can be expanded to four stitching heads to boost production capacity. Built-in photoelectric sensors monitor the whole working process, realizing stable signature conveying, missing stitch prevention and stitching head protection, so as to achieve long-time continuous non-stop running.

Application Scenarios

Wire saddle stitching processing for magazines, product brochures, pamphlets and thin booklets
Binding production of pictorials, leaflets, instruction manuals and corporate publicity materials
Batch binding of various periodicals, event brochures and loose printed signatures
Small and medium-sized printing factories for conventional saddle stitching mass production

Core Advantages

Single-pass completion for both 1-up and 2-up binding, delivering high production efficiency
Standard configuration with 2 M200 stitching heads, upgradable to 4 heads for flexible capacity expansion
Integrated photoelectric sensors ensure stable transport, prevent missed stitches, protect heads, and support continuous non-stop operation
Manual gathering followed by automatic feeding, stitching, and collection with fully automated衔接
Speed of 15-100 cycles/min, suitable for saddle stitching applications including booklets, pictorials, magazines, and more
