Automatic Double Loop Wire Punching and Binding Machine

Product Details

Place of Origin: China

Brand Name: HXCP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 37800 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: T/T

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic double loop wire binding machine, double loop wire punching machine, wire binding machine with punching function


Max Punching And Binding Size:	510mm(punched Side)×800mm	Speed:	800-2000 Books/hour
Max Punching Thickness:	13mm	Max Punching Times For One Book:	5times
Double Loop Wire Size:	1/4"-5/8"	Width Of Paper For Binding:	100-520mm
Air Pressure:	7-8bar	Dimensions:	4800×2600
Min Punching And Binding Size:	100mm(punched Side)×140mm	Punching Thickness(one-time):	1-6mm
Max Punching Thickness For Special Products:	16mm	Max Book Size For The Convery:	420×420mm
Pitch:	2/1; 3/1	Power:	220V/50-60Hz/1PH/4.5kw
Net Weight:	2000kg

Max Punching And Binding Size:	510mm(punched Side)×800mm
Speed:	800-2000 Books/hour
Max Punching Thickness:	13mm
Max Punching Times For One Book:	5times
Double Loop Wire Size:	1/4"-5/8"
Width Of Paper For Binding:	100-520mm
Air Pressure:	7-8bar
Dimensions:	4800×2600
Min Punching And Binding Size:	100mm(punched Side)×140mm
Punching Thickness(one-time):	1-6mm
Max Punching Thickness For Special Products:	16mm
Max Book Size For The Convery:	420×420mm
Pitch:	2/1; 3/1
Power:	220V/50-60Hz/1PH/4.5kw
Net Weight:	2000kg

Product Description

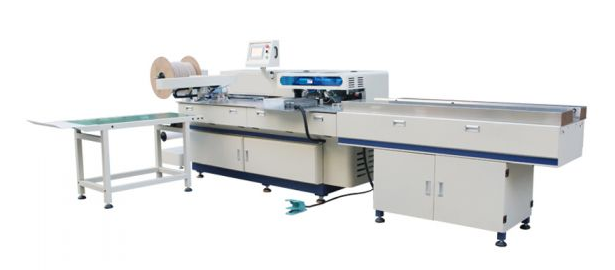

Automatic Double Loop Wire Punching and Binding Machine

Automatic Double Loop Wire Punching and Binding Machine 0

Automatic Double Loop Punching and Wire-O Binding Machine with the integration of unwinding the spool, loops cutting, conveying, and closing, the bigger cover and inner paper punching separately, for various double loop wire books, notebooks, and table calendars, etc., with the optional calendar hanger device, hardcover manual punch to improve the efficiency of customers, only need 1-2 operators, easy to adjust, high speed and stable.

Automatic Double Loop Wire Punching and Binding Machine 2

Automatic Double Loop Wire Punching and Binding Machine 3

Automatic Double Loop Wire Punching and Binding Machine 4

Automatic Double Loop Wire Punching and Binding Machine 5

Automatic Double Loop Wire Punching and Binding Machine 6

Automatic Double Loop Wire Punching and Binding Machine 7

Automatic Double Loop Wire Punching and Binding Machine 8
