Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive

Product Details

Place of Origin: China

Brand Name: HXCP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 38500 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic spiral binding machine, single wire binding machine easy operation, cost effective punching binding machine


Speed:	800-1800 Books/hour	Max Punching Thickness:	13mm(16mm For Special Product)
Max Punching And Binding Size:	400mm(punched Side)×420mm	Max Book Size For Feeding Belt:	400×400mm
Pitch:	4/1;3/1;6mm;8mm	Machine Dimension:	4000×2500×1600mm
Air Pressure:	7-8 Bar	Punching Thickness(one-time):	1-6mm
Max Times Of Punching One Book:	5 Times	Min Punching And Binding Size:	100mm(punched Side)×140mm
Size Of Spiral Wire:	1/4"-5/8"	Width Of Paper For Binding:	100-400mm
Power:	220V/ 50-60Hz/ 6KW	Net Weight:	1250kg

Speed:	800-1800 Books/hour
Max Punching Thickness:	13mm(16mm For Special Product)
Max Punching And Binding Size:	400mm(punched Side)×420mm
Max Book Size For Feeding Belt:	400×400mm
Pitch:	4/1;3/1;6mm;8mm
Machine Dimension:	4000×2500×1600mm
Air Pressure:	7-8 Bar
Punching Thickness(one-time):	1-6mm
Max Times Of Punching One Book:	5 Times
Min Punching And Binding Size:	100mm(punched Side)×140mm
Size Of Spiral Wire:	1/4"-5/8"
Width Of Paper For Binding:	100-400mm
Power:	220V/ 50-60Hz/ 6KW
Net Weight:	1250kg

Product Description

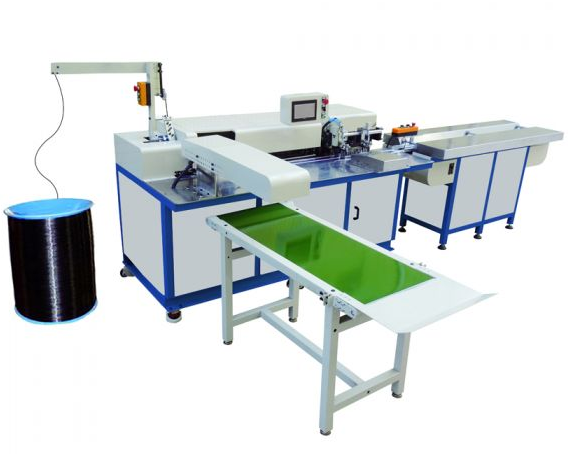

Automatic Spiral Forming Punching and Binding Machine

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 0

Automatic Spiral Forming Punching and Binding Machine is the high efficiency binding equipment for various wire binding books, notebooks, exercise books, and calendars, etc. With the integration of automatically spiral wire forming from the wire materials, the bigger cover and inner paper punching separately, then spiral wire cutting, inserting, binding and cuting off and closing for various stationery products, then collecting delivery, one-stop completion, only need 1-2 operators, easy to adjust, high speed and stable.

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 2

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 3

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 4

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 5

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 6

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 7

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 8

Automatic Spiral Forming Punching and Binding Machine Easy Operation Cost Effctive 9
