HX220 Automatic High Speed Book Sewing Machine Less Vibration Low Noise

Product Details

Place of Origin: China

Brand Name: HXCP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 180000 per set

Packaging Details: Vacuum packing with export wooden case.

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                HX220 automatic book sewing machine, high speed book sewing machine with low noise, book sewing machine less vibration


Max. Machine Speed:	200cyc/min	Min. Book Size:	75×120mm
Max. Book Size:	320×420mm	Opening Head:	4-4-LAP
Number Of Stitches:	10	Standard Voltage:	380V/220V,50/60Hz,3ph
Dimensions:	2885×1800×1350mm(L×W×H)	Book Thickness:	0.25-4mm
Stitches Length:	19mm	Power:	4.5kW
Compressed Air:	500L/min @6bar	Weight:	3000kg

Max. Machine Speed:	200cyc/min
Min. Book Size:	75×120mm
Max. Book Size:	320×420mm
Opening Head:	4-4-LAP
Number Of Stitches:	10
Standard Voltage:	380V/220V,50/60Hz,3ph
Dimensions:	2885×1800×1350mm(L×W×H)
Book Thickness:	0.25-4mm
Stitches Length:	19mm
Power:	4.5kW
Compressed Air:	500L/min @6bar
Weight:	3000kg

Product Description

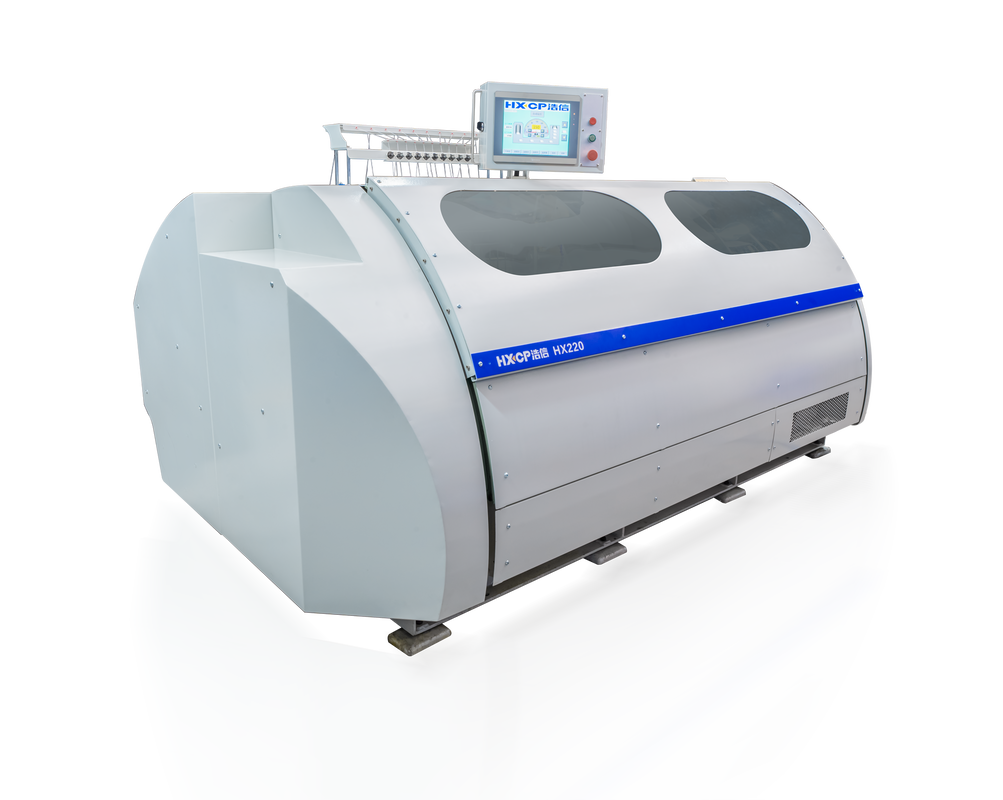

HX220 Automatic High Speed Book Sewing Machine

HX220 Automatic High Speed Book Sewing Machine reaches speeds of up to 200 signatures per min. Its upgraded mechanical, electrical, and pneumatic system adopts carbon-fiber components and three cam boxes to drive the feeder, sewing saddle, and upper sewing mechanisms, including the sewing needle, hook needle, and thread cutter. All cams and the main shaft run in a sealed oil-bath system, reducing noise and vibration while extending component life and minimizing maintenance.

HX220 Automatic High Speed Book Sewing Machine Less Vibration Low Noise 0

HX220 Automatic High Speed Book Sewing Machine Less Vibration Low Noise 1

HX220 Automatic High Speed Book Sewing Machine Less Vibration Low Noise 3

HX220 Automatic High Speed Book Sewing Machine Less Vibration Low Noise 4
