HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization

Product Details

Place of Origin: China

Brand Name: HXCP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 27200 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                saddle stitch trimmer with servo synchronization, notebook making machine with pressing trimming, exercise book trimmer stable servo system


Paper Width:	145-340mm	Paper Length:	200-480mm
Max Product Size:	340×240mm	Min Product Size:	145×100mm
Binding Thickness:	0.2-2.5mm	Folding Thickness:	0.2-2.5mm
Binding Speed:	Max 4000 Times/h	Speed With Cover:	Max 2800 Times/h
Front Cutting Length:	95-238mm	Front Cutting Width:	Max 340mm
Front Cutting Thickness:	5mm	Front Cutting Speed:	Max 3500 Times/h
Double-Sided Cutting Length:	98-238mm	Double-Sided Cutting Width:	140-335mm
Double-Sided Cutting Thickness:	5mm	Double-Sided Cutting Speed:	Max 2800 Times/h
Dimensions:	4700×950×1000mm(L×W×H)	Weight (Stitcher/Folder & Delivery):	345kg
Weight (Front Cutting):	170kg	Weight (Double-Sided Cutting):	358kg

Paper Width:	145-340mm
Paper Length:	200-480mm
Max Product Size:	340×240mm
Min Product Size:	145×100mm
Binding Thickness:	0.2-2.5mm
Folding Thickness:	0.2-2.5mm
Binding Speed:	Max 4000 Times/h
Speed With Cover:	Max 2800 Times/h
Front Cutting Length:	95-238mm
Front Cutting Width:	Max 340mm
Front Cutting Thickness:	5mm
Front Cutting Speed:	Max 3500 Times/h
Double-Sided Cutting Length:	98-238mm
Double-Sided Cutting Width:	140-335mm
Double-Sided Cutting Thickness:	5mm
Double-Sided Cutting Speed:	Max 2800 Times/h
Dimensions:	4700×950×1000mm(L×W×H)
Weight (Stitcher/Folder & Delivery):	345kg
Weight (Front Cutting):	170kg
Weight (Double-Sided Cutting):	358kg

Product Description

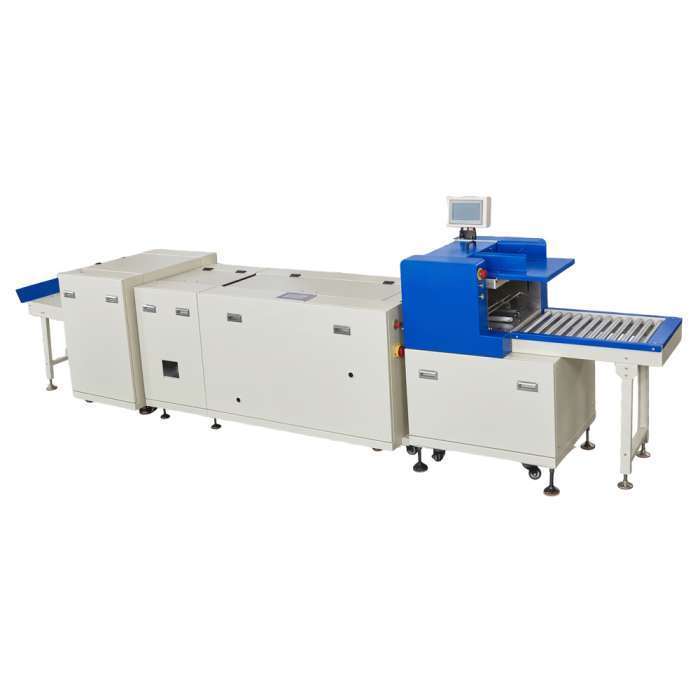

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 0

As digital printing keeps expanding rapidly, printing enterprises are in urgent need of compact high-efficiency integrated equipment to simplify complicated booklet finishing procedures. The HX480P Covering Stitching Trimming Machine is an all-round automated production line specially optimized to match the development trend of modern digital print production.

This machine achieves highly integrated production by gathering five core working steps into one single unit: cover feeding, saddle stitching, folding, flat pressing and three-side trimming. Instead of deploying scattered separate machines for each process, it shortens the whole production flow, saves workshop space and avoids repeated manual transfer between different processing stations.

Constructed with a robust heavy-duty steel frame, the whole unit owns outstanding structural rigidity and running stability during long-hour continuous operation. Equipped with servo synchronized feeding system and intelligent automatic regulation structure, operators can easily adjust stitching heads and cutting dimensions electronically without cumbersome manual mechanical calibration.

Fitted with independent flat pressing module plus high-precision front and double-sided trimming components, the equipment realizes neat flattening and smooth clean edge cutting at the same time. Such sophisticated mechanical configuration effectively eliminates uneven book surfaces, rough cutting edges and deformed book spines commonly seen on ordinary semi-automatic processing equipment.

Capable of reaching a maximum running speed of 2800 cycles per hour, the HX480P delivers remarkable production output for batch booklet manufacturing. Besides fast working speed, its intelligent adjusting design greatly cuts machine setup downtime when switching different booklet specifications, remarkably improving overall workshop production flexibility.

Perfectly developed for digital print scenarios, this integrated stitching trimming machine produces well-shaped high-quality finished booklets steadily. For printing factories focusing on brochure, booklet and magazine production, the HX480P is an ideal upgrading solution to realize streamlined automatic post-press production.

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 1

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 2

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 3

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 4

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 5

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 6

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 7

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 8

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 9

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 10

HX480P Saddle Stitch Trimmer integrated pressing trimming stable servo synchronization 11
