HDP TST Digital Three Side Trimmer Cost Effctive Single Knife

Product Details

Place of Origin: China

Brand Name: HXCP

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 51500 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 20 work days

Payment Terms: T/T

Supply Ability: 3 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                digital three side trimmer, cost-effective single knife trimmer, book block making trimmer


Max Feeding Book Size:	330×390mm(Front Edge×Height)	Min Feeding Book Size:	120×140mm(Front Edge×Height)
Max Finished Book Size:	320×380mm(Front Edge×Height)	Min Finished Book Size:	110×130mm(Front Edge×Height)
Thickness:	5-40mm(Min Thickness Is Related To Book Size)	Feeding Direction:	Spine-First Feeding
Max Spine Centering:	Center Of The Spine Must Not Exceed 195mm	Min Spine Centering:	Center Of The Spine Must Not Exceed 67.5mm
Speed:	240-300cuts/hour(Speed Is Related To Book Weight)	Accuracy:	±0.5mm
Power:	8kW	Weight:	1800kg
Dimensions:	2000×1500×1900mm(L×W×H)

Max Feeding Book Size:	330×390mm(Front Edge×Height)
Min Feeding Book Size:	120×140mm(Front Edge×Height)
Max Finished Book Size:	320×380mm(Front Edge×Height)
Min Finished Book Size:	110×130mm(Front Edge×Height)
Thickness:	5-40mm(Min Thickness Is Related To Book Size)
Feeding Direction:	Spine-First Feeding
Max Spine Centering:	Center Of The Spine Must Not Exceed 195mm
Min Spine Centering:	Center Of The Spine Must Not Exceed 67.5mm
Speed:	240-300cuts/hour(Speed Is Related To Book Weight)
Accuracy:	±0.5mm
Power:	8kW
Weight:	1800kg
Dimensions:	2000×1500×1900mm(L×W×H)

Product Description

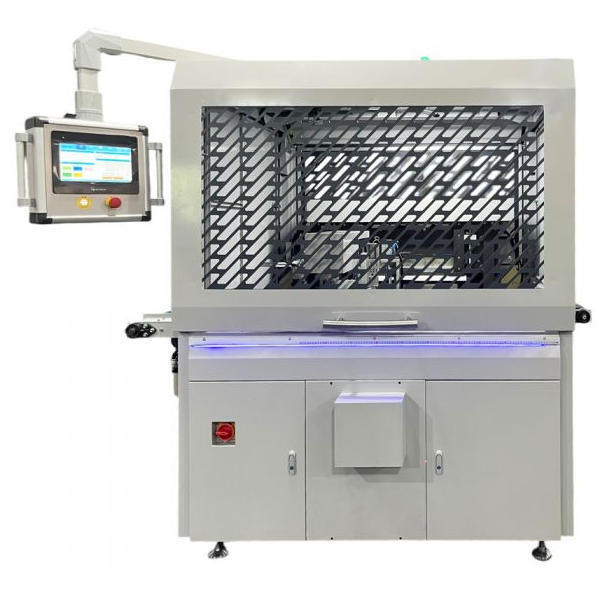

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 0

Engineered for digital finishing, HDP TST Digital Three Side Trimmer utilizes advanced single-knife technology with automated pile rotation to deliver precise, markless cutting for perfect bound, sewn block, and board books. This robust system features zero-makeready capabilities, enabling instant format changes via barcode scanning or JDF workflow integration. Its servo-controlled hydraulic clamping automatically adjusts to variable book thicknesses, while the unique bi-directional knife movement prevents spine tearing. With optional corner rounding and a fully interlocked safety design, HDP TST supports unattended operation.

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 1

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 2

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 3

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 4

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 5

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 6

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 7

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 8

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 9

HDP TST Digital Three Side Trimmer Cost Effctive Single Knife 10
