Highlight:
plastic coil binding machine with punch
, spiral coil inserter for books
, coil binding machine with closer
Product Description:

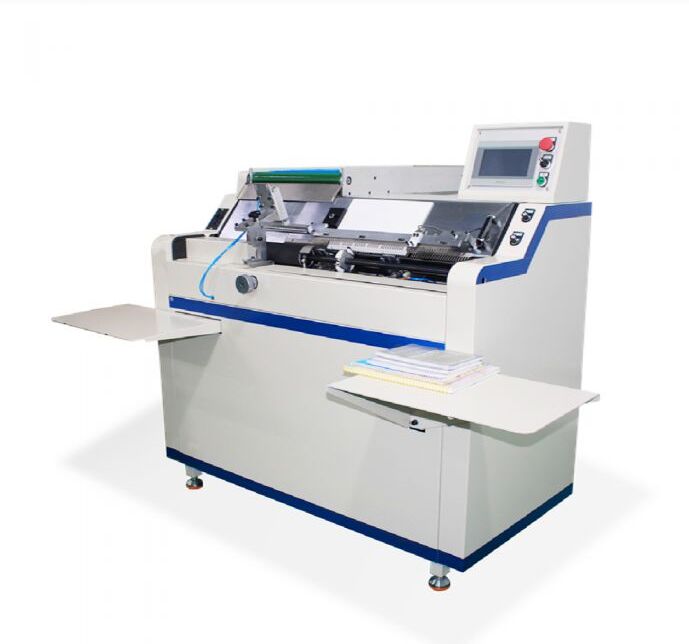

The Plastic Spiral Coil Binding Machine is a high-speed, fully integrated solution for binding pre-punched books with plastic spiral coils. It automatically inserts the coil through all holes, cuts it to exact length, closes both ends to prevent unwinding, and delivers the finished book - all in one continuous cycle. Requiring only 1-2 operators, this machine eliminates manual threading, cutting, and crimping, dramatically improving productivity and consistency for notebooks, calendars, manuals, and other stationery products.
After an operator feeds a stack of pre-punched books or the machine connects to an inline puncher, the automatic coil inserter guides a continuous plastic spiral through every punch hole in a single forward motion. The integrated cutter then trims the coil precisely, and the closing mechanism rotates or crimps the ends securely. The finished book is ejected onto a delivery conveyor for collection. The entire process takes only a few seconds per book.
The machine supports a wide range of book sizes and coil diameters. Typical binding thickness ranges from 3 mm to 50 mm (20-500 sheets). Coil pitch options include 4:1 (standard) and 3:1 (large holes). Changeover between different formats is tool-less or requires simple adjustments, taking under 5 minutes. Production speed typically reaches 1,200-2,500 books per hour depending on operator handling.
Built on a heavy steel frame, the machine operates smoothly at high speeds without vibration. Safety guards and electronic sensors prevent jams and protect operators. The delivery system can be configured as a stacker or conveyor to match your downstream packaging line.
This semi-automatic coil binding machine is ideal for stationery factories, digital print shops, binderies, and publishing houses. It offers consistent closing quality, low maintenance, a compact footprint, and a fast return on investment compared to manual coil binding or separate machines.
Features:
1. One-stop coil insert, cut, close, and collect
2. Requires only 1-2 operators for high output
3. Automatic coil threading through all punch holes
4. Precise cutting and crimping for secure ends
5. Tool-less changeover between book sizes
6. Handles coil diameters 6 to 50 mm
7. Speed up to 2500 books per hour
8. Heavy steel frame for stable operation
9. Eliminates manual cutting and closing labor
10. Ideal for notebooks, calendars, and manuals
Technical Parameters:
| Model |
Plastic Spiral Coil Binding Machine |
| Product Name |
Plastic Spiral Coil Binding Machine |
| Type |
Plastic Spiral Coil Binding Machine |
| Speed |
500-1000pcs/h |
| Max Binding Length |
350mm |
| Min Binding Length |
135mm |
| Max Coil Length |
380mm |
| Min Coil Length |
135mm |
| Spiral Diameter |
5/16-5/8 |
| Pitch |
4-1/5-1/3-1 |
| Binding Station Power |
220V,2KW,50HZ |
| Forming Station Power |
220V, 3KW, 50HZ |
Applications:
Typical application occasions for the Plastic Spiral Coil Binding Machine include mass production of spiral-bound notebooks, planners, calendars, exercise books, presentation folders, and any pre-punched stationery item where fast, secure coil binding is essential for a professional finish. The machine's one-stop design - insert, cut, close, and collect - eliminates manual threading and crimping, making it especially valuable during back-to-school seasons or year-end printing rushes when output volume and delivery deadlines are critical.
In terms of scenarios, the Plastic Spiral Coil Binding Machine excels in medium to large-scale stationery factories and commercial binderies where repetitive, high-speed coil binding is required to maintain consistent loop alignment and closed-end security. It is also ideal for integration within semi-automated book finishing lines, where an upstream punching unit feeds directly into the coil inserter, and the delivery conveyor connects to packaging stations, creating a seamless, labor-efficient workflow.
Beyond traditional office stationery, this machine is widely adopted by calendar manufacturers who need to bind thick, hangable wall calendars with large-diameter coils. Recipe book producers also benefit from the machine's precise cutting and closing, which ensures that coils do not snag or unwind during frequent page turning. Even short-run custom notebook makers find value in the machine's quick changeover capability, enabling economical production of small batches without wasting time on manual coil threading or separate closing tools.
Educational publishers and commercial printers handling workbooks, test booklets, or training manuals rely on the Plastic Spiral Coil Binding Machine to maintain consistent coil insertion across thousands of copies. Its automatic delivery system reduces operator fatigue during long production runs, while the integrated end-closing mechanism creates smooth, safe edges that protect users' hands and prevent coil pull-out. For businesses upgrading from manual coil binding (hand threading, plier cutting, and plier closing), this machine offers the ideal entry point into automated finishing without requiring a fully robotic binding line.
Support and Services:
For technical support and service inquiries regarding the Electric Corner Cutting Machine, please refer to the user manual provided with your purchase for detailed troubleshooting steps and maintenance guidelines.
Our technical support team is dedicated to assisting you with installation, operation, and maintenance of the The Electric Corner Cutting Machine to ensure optimal performance and longevity of the machine.
We offer comprehensive training sessions and service programs designed to help your staff efficiently operate the The Electric Corner Cutting Machine, minimizing downtime and maximizing productivity.
Regular maintenance services are recommended to keep the machine running smoothly. These services include inspection, lubrication, adjustment, and replacement of worn parts as necessary.
For spare parts and accessories compatible with the The Electric Corner Cutting Machine, please consult the parts catalog or your authorized distributor.
We strive to provide prompt and effective support to address any technical issues you may encounter, ensuring minimal disruption to your production process.
Packing and Shipping:
The Plastic Spiral Coil Binding Machine is securely packaged to ensure safe delivery. Each unit is carefully wrapped with protective materials to prevent damage during transit. The machine is placed in a sturdy, custom-designed cardboard box that provides excellent cushioning and support.
For shipping, the packaged The Plastic Spiral Coil Binding Machine is palletized and shrink-wrapped to maintain stability and protection. We offer various shipping options including standard freight and expedited delivery to meet your needs. All shipments include tracking information and insurance for added peace of mind.
Upon receipt, please inspect the package for any visible damage before signing for delivery. In case of any issues, contact our customer service team immediately for assistance.
FAQ:
Q1: What is the brand and model number of the The Plastic Spiral Coil Binding Machine?
A1: The brand name is HXCP and the model number is HXCP.
Q2: Where is The Plastic Spiral Coil Binding Machine manufactured?
A2: The Plastic Spiral Coil Binding Machine is made in China.
Q3: What certifications does The Plastic Spiral Coil Binding Machine have?
A3: The Plastic Spiral Coil Binding Machine is CE certified.
Q4: What is the minimum order quantity and price per set?
A4: The minimum order quantity is 1 set, and the price is USD 11500 per set.
Q5: What are the payment terms accepted for purchasing The Plastic Spiral Coil Binding Machine have?
A5: Payment terms include L/C, D/A, D/P, T/T, and Western Union.
Q6: What is the supply capacity and delivery time for The Plastic Spiral Coil Binding Machine have?
A6: The supply ability is 10 sets per month, with a delivery time of 30 days.
Q7: How is The Plastic Spiral Coil Binding Machine have packaged for shipping?
A7: The machine is packaged using stretch film and a wooden case to ensure safe delivery.
