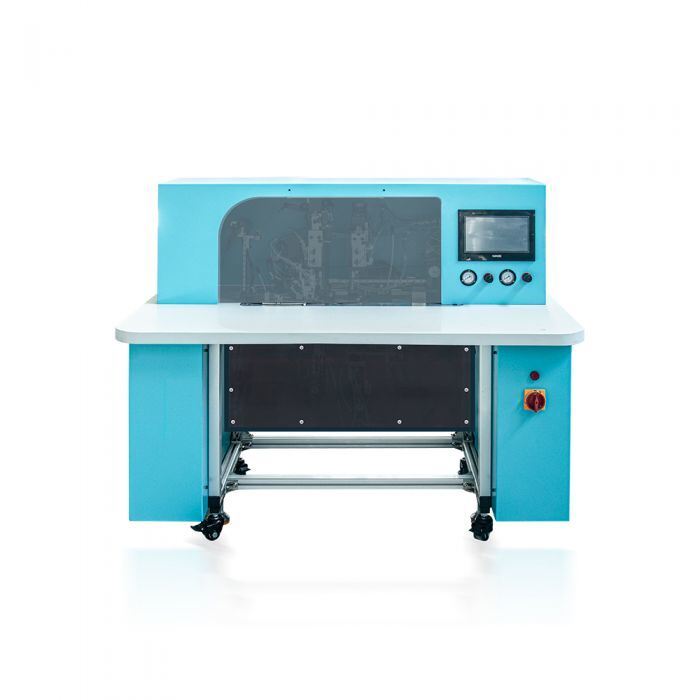

HX18B Semi-Auto Elastic Band Attaching Machine for Notebook Covers

Name: HX18B Semi-Auto Elastic Band Attaching Machine for Notebook Covers
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX18B
Price: 24,300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX18B

Document: HX18B.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 30 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                semi-auto elastic band attaching machine, notebook cover elastic band fixer, HX18B elastic band fixing machine


Min Cover Size:	102×102mm(W×L)	Max Cover Size:	300×420mm(W×L)
Working Speed:	1000-1200pcs/min	Distance From Hole To Upper And Bottom Side:	9-30mm
Distance From Hole To Cover Edge Side:	0-40mm	Distance Between 2 Holes:	86-271mm
Elastic Band Length:	0-120mm	Width Of Elastic Band:	6-10mm
Cover Thickness:	0.7-7mm	Dimensions:	1500×860×1385(L×W×H)
Power:	3.5KW	Voltage:	220V
Weight:	310KG

Min Cover Size:	102×102mm(W×L)
Max Cover Size:	300×420mm(W×L)
Working Speed:	1000-1200pcs/min
Distance From Hole To Upper And Bottom Side:	9-30mm
Distance From Hole To Cover Edge Side:	0-40mm
Distance Between 2 Holes:	86-271mm
Elastic Band Length:	0-120mm
Width Of Elastic Band:	6-10mm
Cover Thickness:	0.7-7mm
Dimensions:	1500×860×1385(L×W×H)
Power:	3.5KW
Voltage:	220V
Weight:	310KG

Product Description

HX18B Semi Auto Notebook Elastic Band Fixing Machine

HX18B Semi-Auto Elastic Band Attaching Machine for Notebook Covers 0

Description

HX18B Semi Auto Notebook Elastic Band Fixing Machine is widely used for notebook elastic band fixing. It supports both hard cases notebooks and also softcover notebooks. Easy operation with only one person to put in the cases and get the finished cover with an elastic band, greatly enhancing the working efficiency and product quality.

Features:

Product Name: HX18B Semi Auto Notebook Elastic Band Fixing Machine
Enhanced Efficiency: Automates the elastic band fixing process, significantly increasing production speed compared to manual methods.
Cost-Effectiveness: Reduces labor costs and increases overall production efficiency, making it a cost-effective solution for businesses.
Width Of Elastic Band: 5/6/7/8/10/12mm
Dimensions: 1300×1200×1600(L×W×H)
Distance From Hole To Cover Edge Side: 10-50mm

Keywords: Notebook Band Fixing, Auto Notebook Fixing, Elastic Fixing Machine

Support and Services:

The HX18B Semi Auto Notebook Elastic Band Fixing Machine is a specialized piece of equipment designed for the efficient and accurate attachment of elastic bands to notebook covers. Our technical support and services team is available to assist with any questions or issues related to the operation, maintenance, and repair of the machine.

We offer a range of services to ensure that your machine is operating at its best, including:

Installation and setup assistance
Ongoing technical support via phone or email
Regular maintenance and servicing
Repairs and replacement parts
Training and education for machine operators

Our team of experienced technicians is dedicated to providing prompt and reliable support, so you can focus on your business operations with confidence. Contact us today to learn more about our technical support and services for the HX18B Semi Auto Notebook Elastic Band Fixing Machine.

Parameters

Min Cover Size	102×102mm(W×L)	Max Cover Size	300×420mm(W×L)
Working Speed	1000-1200pcs/min	Distance from Hole to Upper and Bottom Side	9-30mm
Distance from Hole to Cover Edge Side	0-40mm	Distance between 2 Holes	86-271mm
Elastic Band Length	0-120mm	Width of Elastic Band	6-10mm
Cover Thickness	0.7-7mm	Dimensions	1500×860×1385(L×W×H)
Weight	310KG	Power	3.5KW
Voltage	220V

Products Show

HX18B Semi-Auto Elastic Band Attaching Machine for Notebook Covers 1

HX18B Semi-Auto Elastic Band Attaching Machine for Notebook Covers 3

Details

HX18B Semi-Auto Elastic Band Attaching Machine for Notebook Covers 4
