HX420CSR Automatic Hardcover Case Spine Rounding Machine Pneumatic Forming Heating Mold Adjustable

Name: HX420CSR Automatic Hardcover Case Spine Rounding Machine Pneumatic Forming Heating Mold Adjustable
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HX420CSR
Price: 5200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HX420CSR

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 5200 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 15 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                automatic hardcover case rounding machine, pneumatic spine forming heating mold, adjustable hardcover spine rounding equipment


Case Spine Width:	15-100mm	Casa Unfold Width:	175-790mm
Max Length Of Case Spine:	420mm	Power:	800W
Electricity Demand:	220v/3ph	Dimensions:	2500×1000×960mm(L×W×H)

Case Spine Width:	15-100mm
Casa Unfold Width:	175-790mm
Max Length Of Case Spine:	420mm
Power:	800W
Electricity Demand:	220v/3ph
Dimensions:	2500×1000×960mm(L×W×H)

Product Description

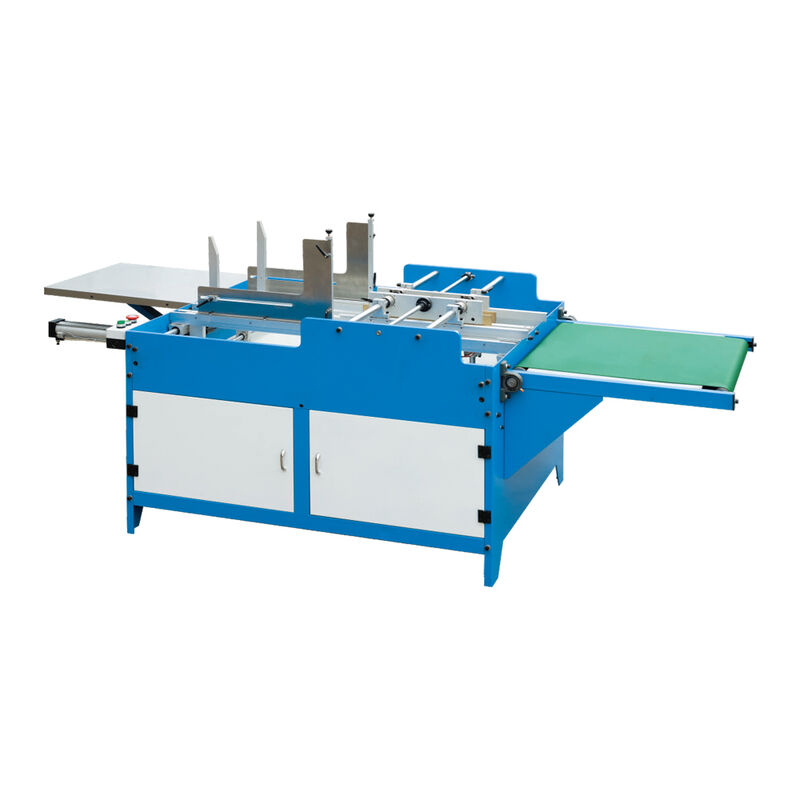

HX420CSR Automatic Hardcover Case Spine Rounding Machine is used to shape and round the hardcover spine, to match the round back book block for casing in. This machine adopts pneumatic forming and round back mold heating by air cylinder, making it easy and efficient to round the hardcover case spine. The mold with different radii is easy to change, according to the book thickness, and the forming time and heating temperature are adjustable. Different from manual feeding for rounding, the continuous feeding conveyor makes the whole production process more efficient. It also can be connected with case-making machines or other production lines.
