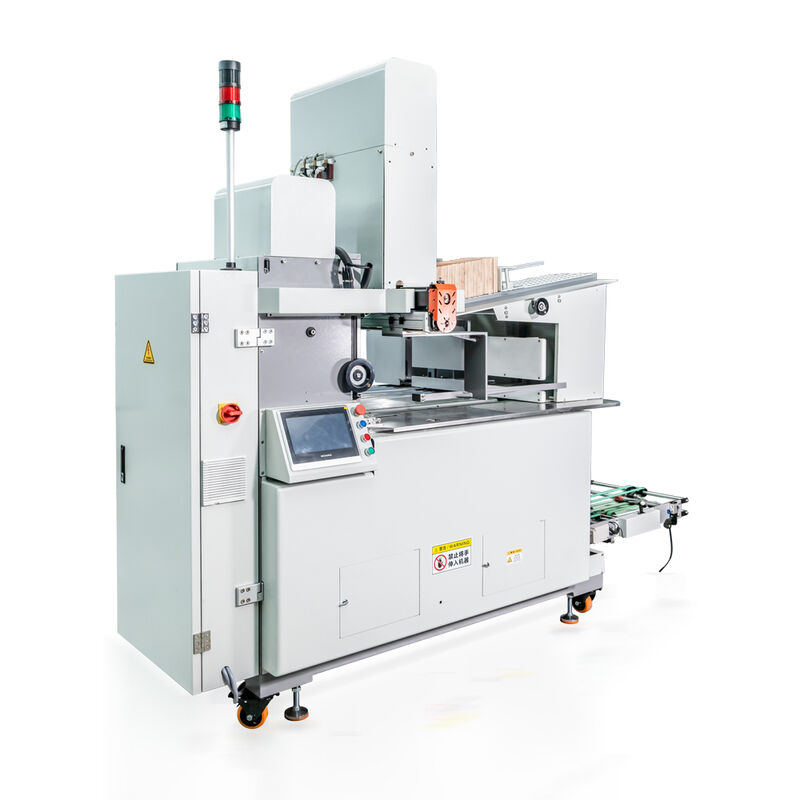

HXDK520 Automatic Vertical Stacking Bundling Machine 3000N Pressure Auto Clapboard Insertion Intelligent

Product Details

Place of Origin: China

Brand Name: HXCP

Certification: CE

Model Number: HXDK520

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 42860 per set

Packaging Details: Stretch Film with Wooden Case

Delivery Time: 15 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 sets/month

Get Best Price
Product Details
Highlight:

automatic vertical stacking machine

,

bundling machine with 3000N pressure

,

intelligent auto clapboard insertion machine

Max Folding Speed(Paper Sheet Folding Machine):
20000pcs/h
Max Folding Speed(Web Press Machine Folding):
40000pcs/h
Max Signature Size:
460×320mm
Min Signature Size:
210×105mm
Signature Requirement:
60-120gsm 16/32k
Bundle Thickness:
500-700mm
Board Thickness:
8-12mm
Bundling Pressure:
8000N
Max Folding Speed(Paper Sheet Folding Machine):
20000pcs/h
Max Folding Speed(Web Press Machine Folding):
40000pcs/h
Max Signature Size:
460×320mm
Min Signature Size:
210×105mm
Signature Requirement:
60-120gsm 16/32k
Bundle Thickness:
500-700mm
Board Thickness:
8-12mm
Bundling Pressure:
8000N
Product Description
In large-run folding signatures production, efficient, labor-free stacking and bundling are critical to streamline post-press workflows. The HXDK520 Automatic Vertical Stacking and Bundling Machine integrates seamlessly with upstream equipment, delivering fully intelligent automatic processing, making it ideal for high-volume printing and binding facilities.
HXDK520 Automatic Vertical Stacking Bundling Machine 3000N Pressure Auto Clapboard Insertion Intelligent 0
The HXDK520 Automatic Vertical Stacking and Bundling Machine is designed for seamless integration, as it can be connected to the web press printing machine, or paper sheet folding machine, forming a continuous production line for folding signatures. This integration eliminates manual transfer of materials, reducing downtime and ensuring a smooth, efficient workflow from printing or folding to stacking and bundling.
HXDK520 Automatic Vertical Stacking Bundling Machine 3000N Pressure Auto Clapboard Insertion Intelligent 1
Its core function is folding signatures collecting: the machine collects folding signatures vertically, a design that ensures the signatures remain neat and aligned throughout the process. By adopting vertical collection, it avoids the deformation or misalignment that often occurs with horizontal stacking, maintaining the integrity of the folded signatures.
HXDK520 Automatic Vertical Stacking Bundling Machine 3000N Pressure Auto Clapboard Insertion Intelligent 2
After vertical collection, the HXDK520 automatically tidies the signatures by pressing and flapping the stack neat, ensuring every stack is uniform and properly aligned before moving to the next stage. This step eliminates the need for manual adjustment, reducing labor input and ensuring consistent stack quality across every batch.

  • Max Folding Speed(Paper Sheet Folding Machine)
  • 20000pcs/h
  • Max Folding Speed(Web Press Machine Folding)
  • 40000pcs/h
  • Max Signature Size
  • 460×320mm
  • Min Signature Size
  • 210×105mm
  • Signature Requirement
  • 60-120gsm 16/32k
  • Bundle Thickness
  • 500-700mm
  • Feeding Height
  • 300-520mm
  • Board Thickness
  • 8-12mm
  • Bundling Pressure
  • 8000N
  • Power
  • 380V/3ph 6.5kW
  • Gas Demand
  • 6bar
  • Dimensions
  • 3000×1950×2550mm(L×W×H)
  • Weight
  • 2000Kg




































Once the stack is neat, the machine automatically pushes it to the bundling station, where it performs two key operations: inserting clapboard at both ends automatically to protect the signatures, followed by 3000N pressure pressing and bundling the stack automatically for secure, stable packaging.

The HXDK520 is specifically designed as the fully automatic delivery for large runs folding signatures production, capable of handling high-volume tasks without compromising efficiency or quality. Its automated workflow is tailored to meet the demands of large-scale production, ensuring consistent output even during long-running operations.




A standout advantage of the HXDK520 Automatic Vertical Stacking and Bundling Machine is that it requires no laborer, completely automating the whole intelligent folding signatures stacking and bundling process. This eliminates labor costs, reduces human error, and allows operators to focus on monitoring and maintaining the production line, significantly improving overall productivity.
