Product Details
Place of Origin: China
Brand Name: HXCP
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 85500 per set
Packaging Details: Vacuum packing with export wooden case.
Delivery Time: 20 work days
Payment Terms: T/T
Supply Ability: 3 sets/month
Max Case Size: |
680×400mm |
Min Case Size: |
70×70mm |
Center Board SizeBoard: |
6-100mm |
Center Board Thickness: |
0.3-5mm |
Board Thickness: |
0.5-5mm |
Gutter Width: |
3-17mm |
Speed: |
10-36pcs/min |
Voltage: |
380/220V |
Weight: |
4500kg |
Power: |
10.4kW |
Dimensions: |
3500×3500×2000mm |
E-controller Size: |
1120×560×980mm |
Max Case Size: |
680×400mm |
Min Case Size: |
70×70mm |
Center Board SizeBoard: |
6-100mm |
Center Board Thickness: |
0.3-5mm |
Board Thickness: |
0.5-5mm |
Gutter Width: |
3-17mm |
Speed: |
10-36pcs/min |
Voltage: |
380/220V |
Weight: |
4500kg |
Power: |
10.4kW |
Dimensions: |
3500×3500×2000mm |
E-controller Size: |
1120×560×980mm |

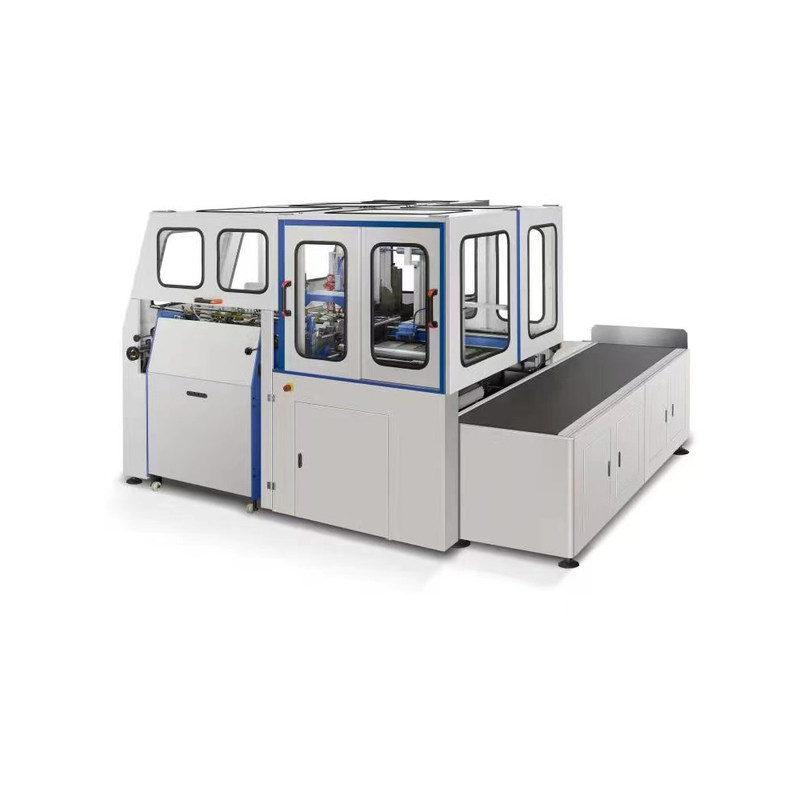

HX36 Multi Functional Automatic Hardcover Case Making Machine highly cost-effective
Compare with the traditional case making machine, HX36 Multifunctional Automatic Hardcover Case Making Machine can be suitable for all cases, not only for the standard straight corner case with 1-7 separate boards but also can be for round corners as well as different shape cases, such as arc, triangle, trapezium, etc.. With the mechanical system for driving by the cam, the position can be more accurate and the machine is more stable and durable. It is applicable for making the hardcover case for the book, stationery items, and luxury packaging rigid box.
